Multiple models, non-standard customization
Three basic models, supporting customization, covering a range of aperture sizes from 4mm to 120mm.
Description
| Detection Content | Defects such as scratches and blowholes on the inner walls of holes. |
| Applicable Industry | Automotive industry. |
| Corresponding Workpieces | Components including threaded holes, through holes, blind holes, etc. |

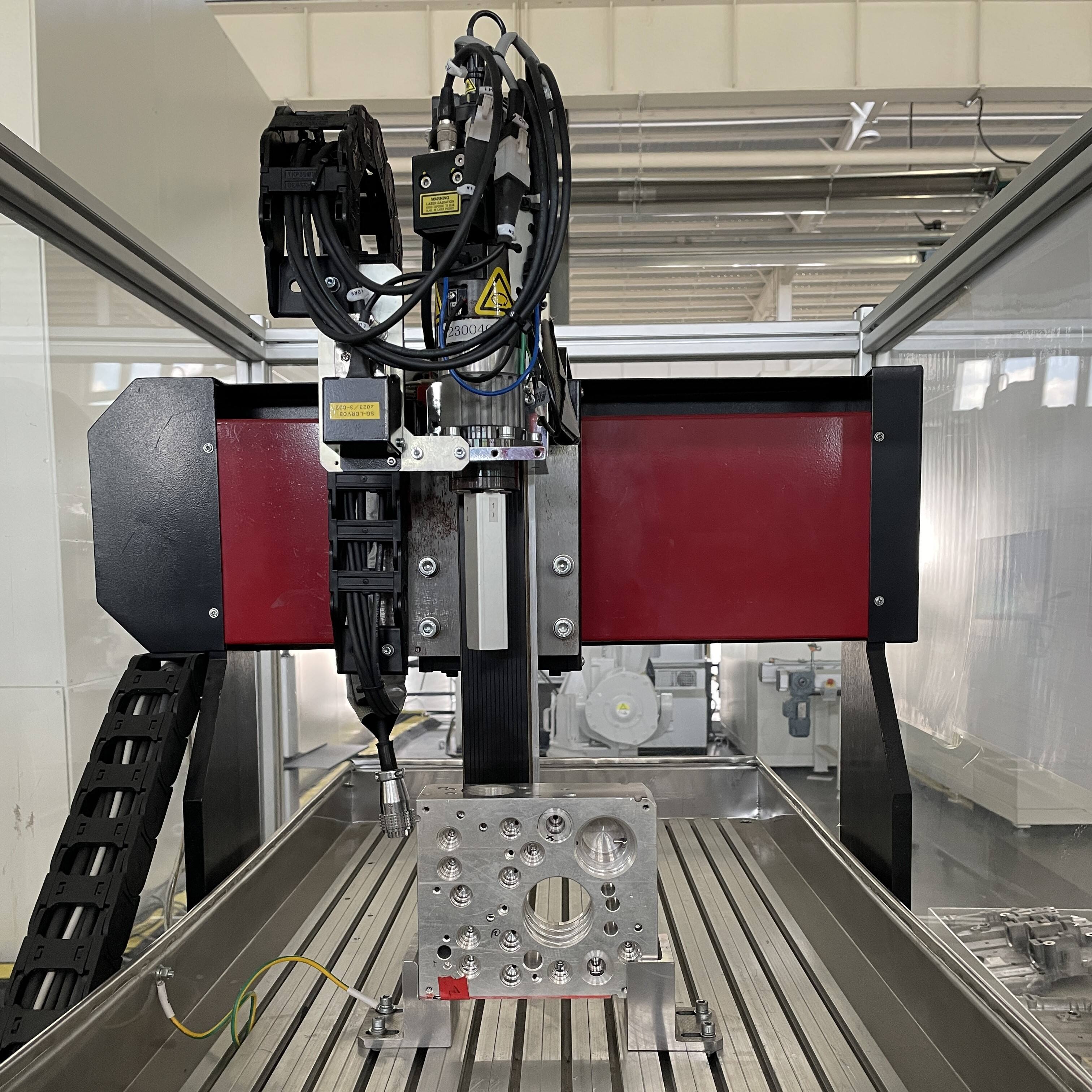

| Equipment Transmission | Robot-based with a two-axis servo system. |
| Equipment Description | Capable of detecting defects on the inner walls of holes with a minimum diameter of φ4mm. |
| Specification | Non-standard customization. |
| Production Rhythm | Inspection speed of 25-50mm/s. |
| Imaging Method | Laser imaging. |
| Light Source | Red semiconductor laser. |
| Minimum Detectable Defect | Contours larger than 0.2mm can be detected. |
| Minimum Resolution | 0.01mm. |
| Control System | Industrial computer and PLC. |
Detecting diverse workpieces
Multiple parts such as valve body, cylinder body, sleeve, motor core, housing, etc. are inspected, supporting robot probe holding and machining center forms.
Device Description

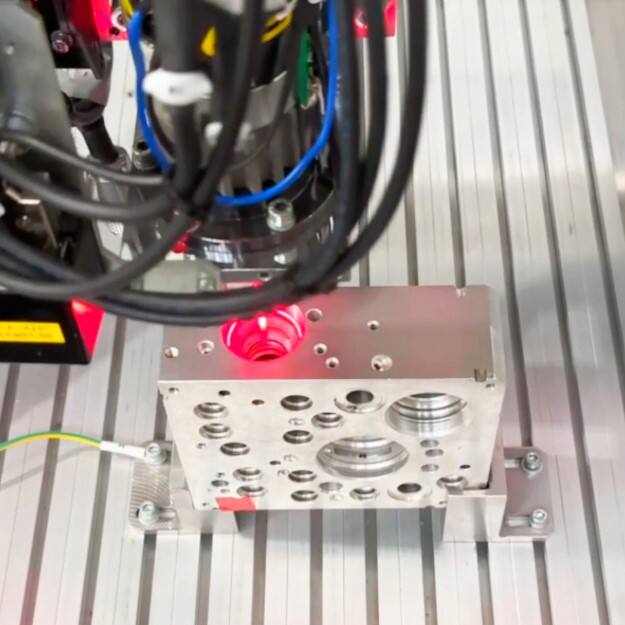

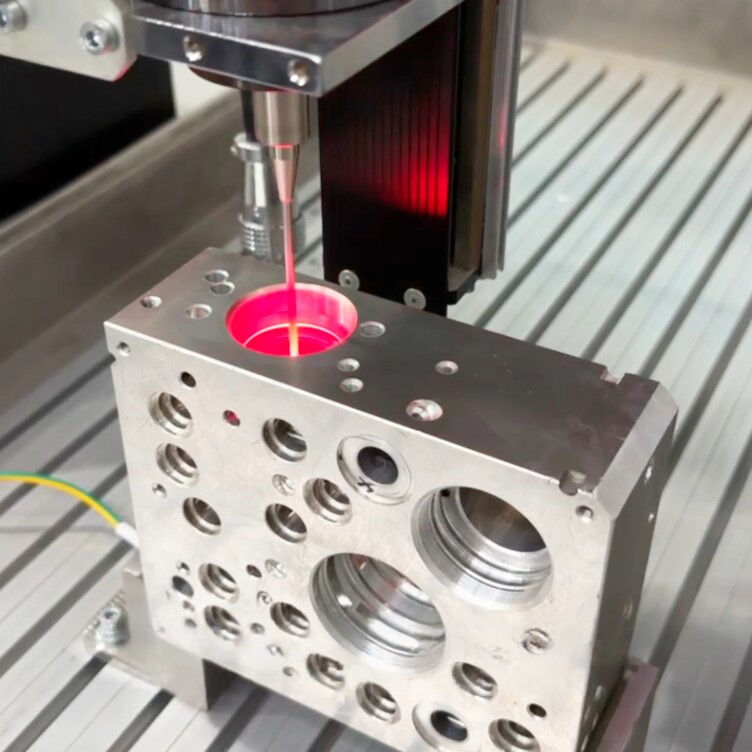

By using a high-speed rotating laser lens (12000 revolutions per minute), defects such as scratches, bumps, and sand holes are detected on the inner wall of the hole. This form of detection has obvious advantages, especially for narrow holes (with a minimum hole diameter of 4mm and an accuracy of 0.3mm). Laser can replace light sources for perfect imaging, and with a dedicated detection algorithm, the defect detection effect on the inner wall of the hole is excellent, with high detection accuracy and resistance to light interference.
