Housing Cleaning Machine Shimada Big Bird Cleaning Machine CLH

Product Introduction:Housing Cleaning Machine

A professional industrial cleaning solution designed for various industrial housings (e.g., new energy vehicle motor housings, mechanical equipment housings). It integrates automated material handling, multi-mode high-pressure cleaning, and precision drying to meet the strict cleanliness and efficiency demands of housing production, supporting manufacturers in optimizing workflow and ensuring component reliability.

Key Features

• 110-Second High-Efficiency Cycle

• Finishes one cleaning cycle in 110 seconds per piece, perfectly matching the high-speed rhythm of housing mass production. Significantly shortens workpiece processing time and boosts overall production line throughput.

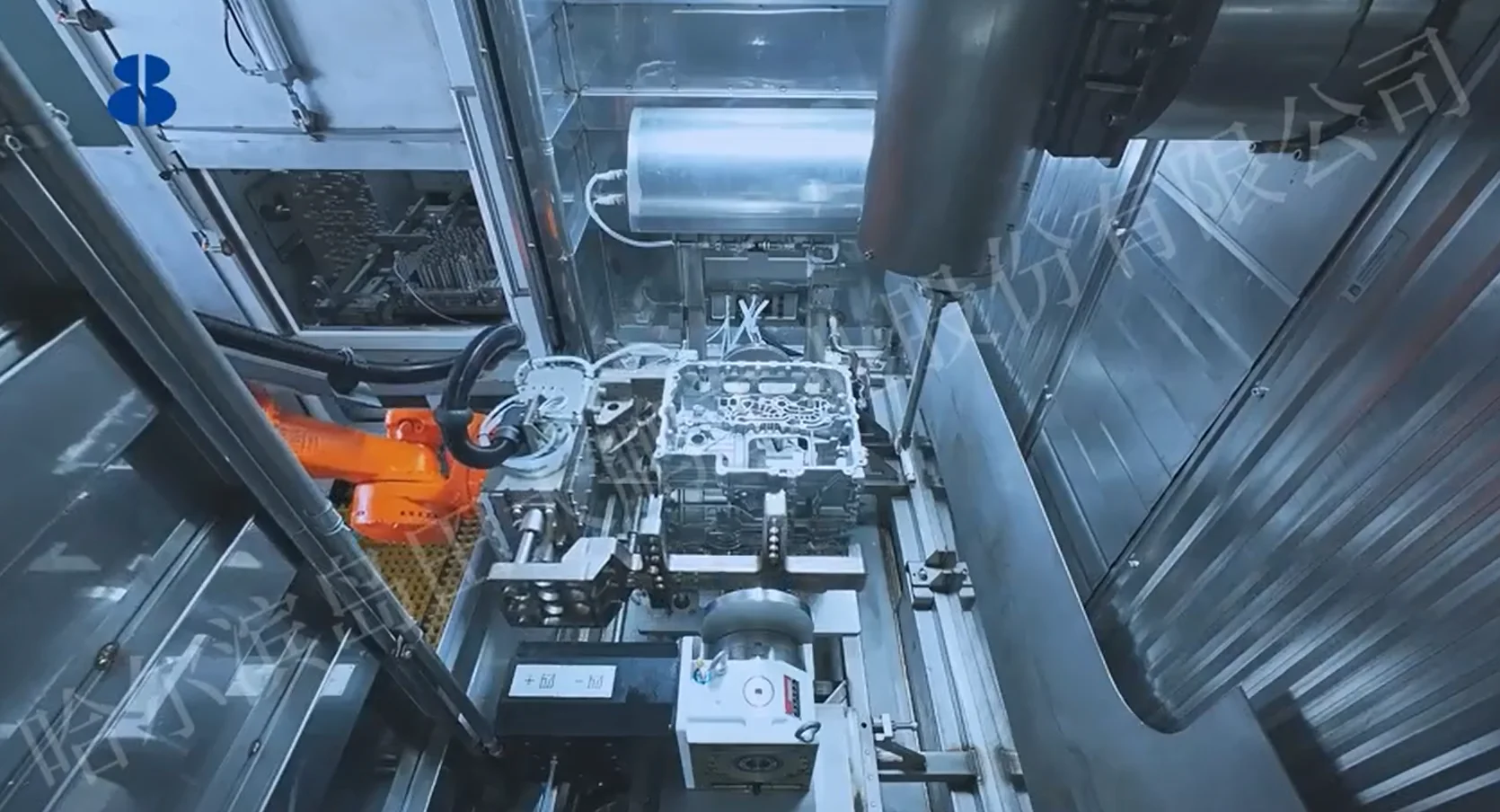

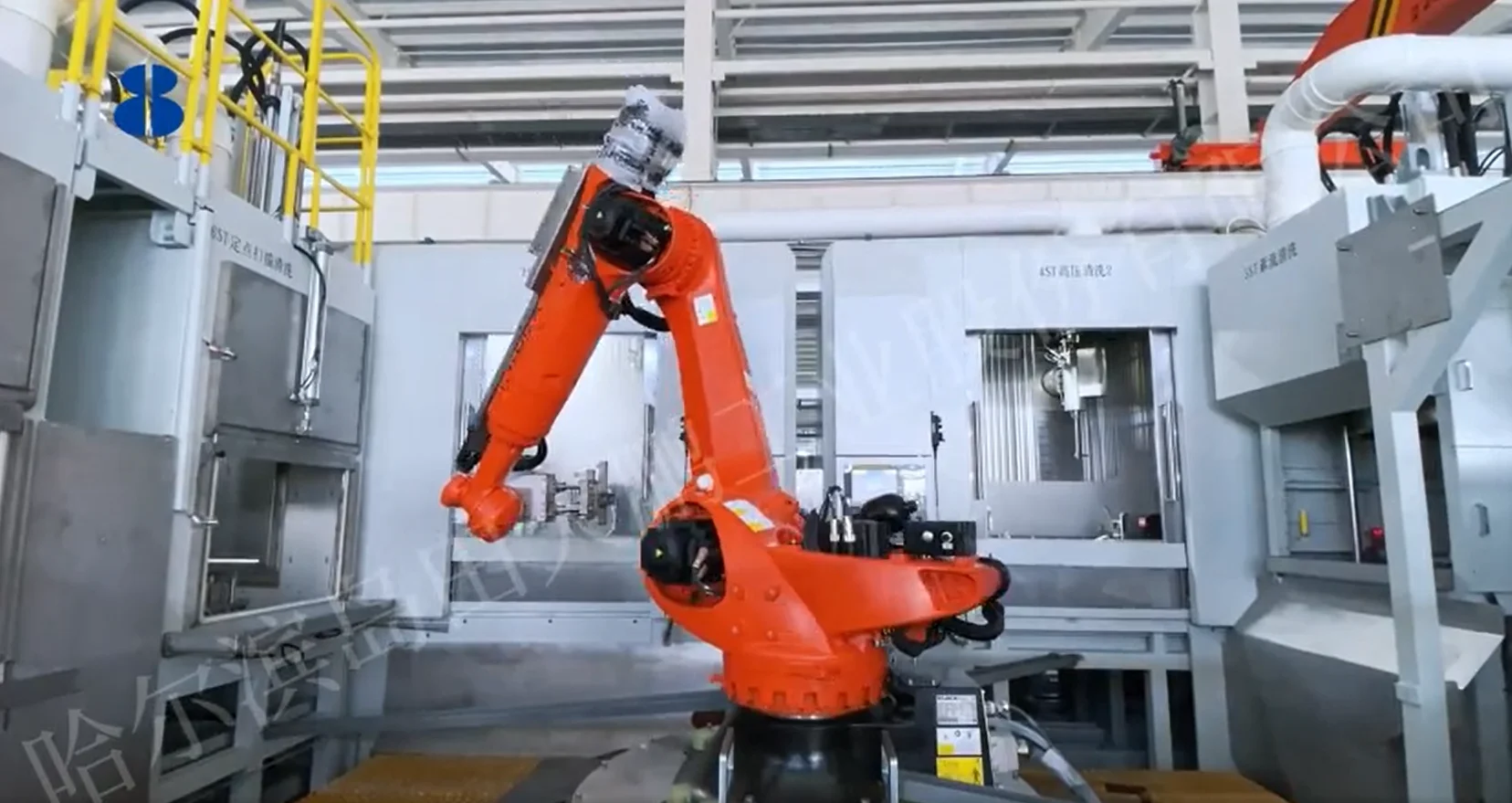

• Roller & Robotic Loading/Unloading

• Adopts roller conveyor loading/unloading and robotic workpiece handling. The fully automated system minimizes manual intervention, reduces labor intensity, and lowers the risk of scratches or deformation to housing surfaces during transfer.

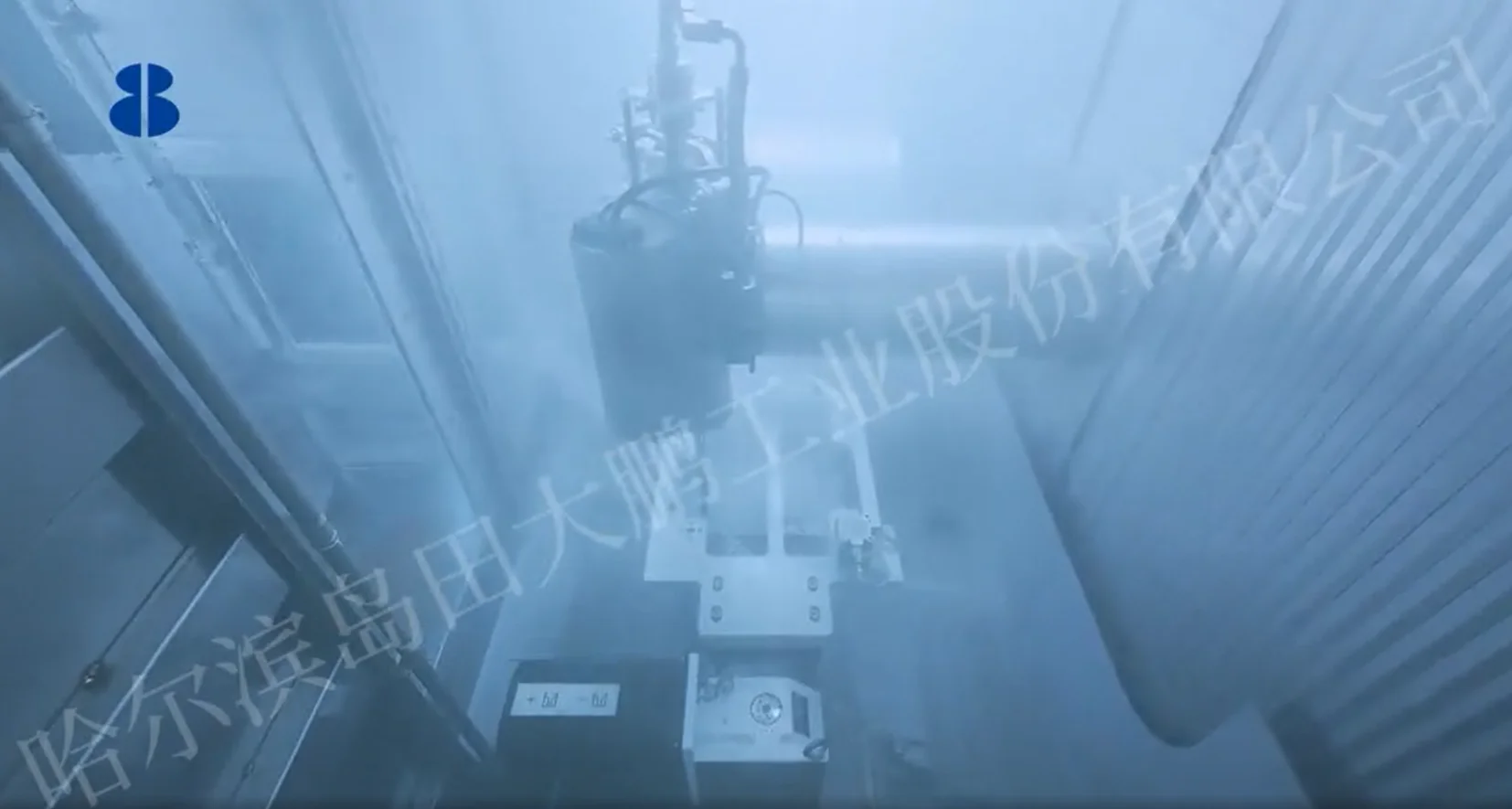

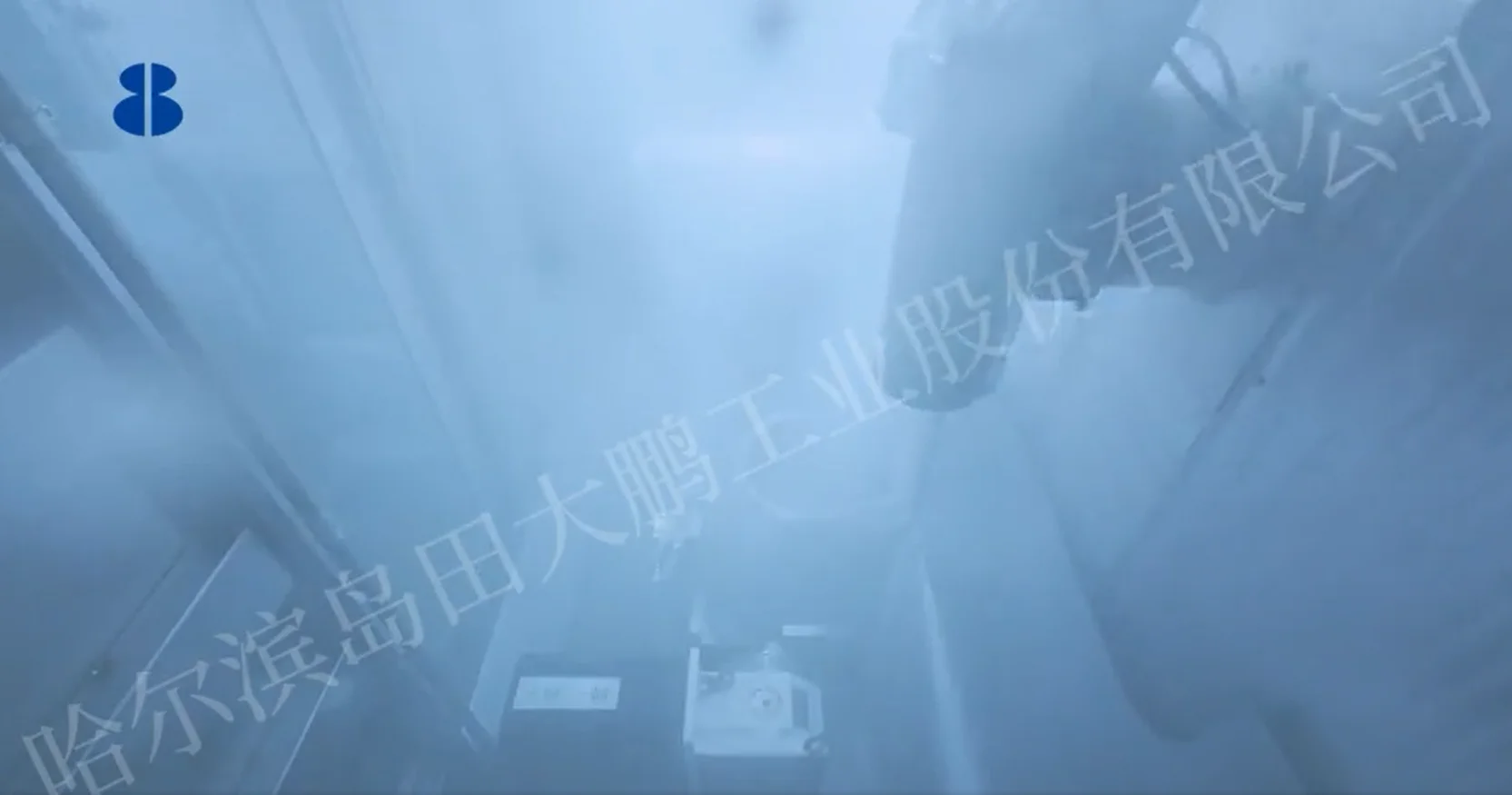

• 4-Mode Precision Cleaning

• Combines dual CNC high-pressure cleaning, rinsing, and fixed-point cleaning. Dual CNC high-pressure ensures uniform pressure and accurate positioning for large-area decontamination; rinsing removes residual cleaning agents; fixed-point cleaning targets narrow gaps or key areas—comprehensively eliminating impurities.

• Dual-Stage Complete Drying

• Features compressed air fixed-point blowing and vacuum drying. The two-step process ensures housings are completely dry, preventing moisture-induced corrosion or damage to internal components, and safeguarding subsequent assembly quality.

• Graded Precision Cleanliness Control

• Implements strict cleanliness standards for key areas: max 2 particles (600-1000μm), 50 particles (200-600μm), and 250 particles (100-200μm) per 1000 cm² on surfaces. No particles over 1000μm (metal or non-metal) are allowed, with adaptive standards for other areas—meeting high-precision housing application requirements.

key product benefits

• This Housing Cleaning Machine stands out for its speed, precision, and automation—tailored to the unique cleaning needs of industrial housings. Its 110-second fast cycle, graded cleanliness control, and adaptive compatibility perfectly meet the strict requirements of high-precision housing manufacturing. For manufacturers producing new energy vehicle components, mechanical equipment, etc., it is a reliable tool to enhance product quality, optimize production efficiency, and reduce operational costs.

  The above product parameters are for reference only. For detailed information, please contact us by phone.

Durable Industrial Grade Build

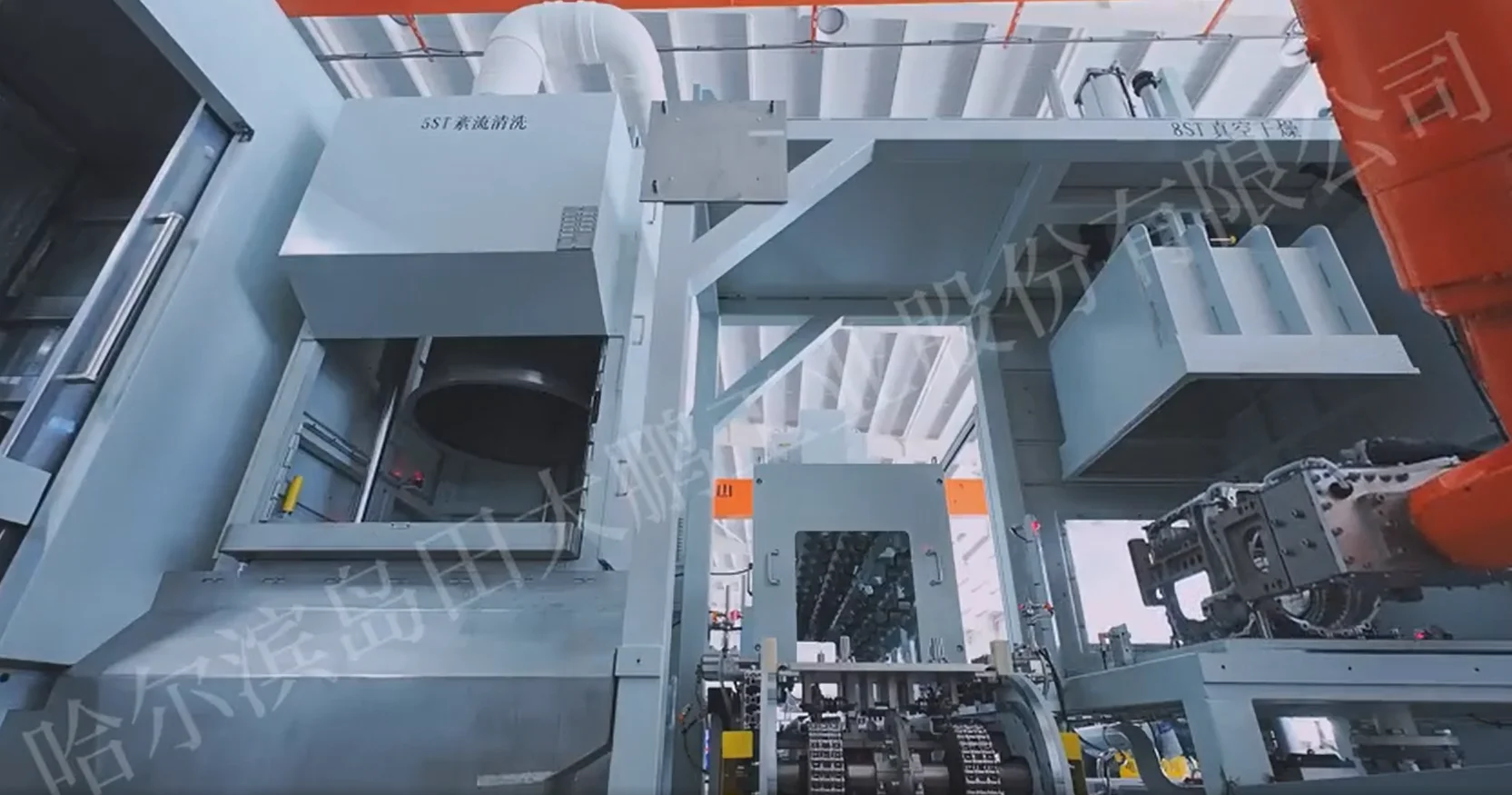

• Seamless Production Line Integration:Roller conveyor design enables smooth connection with existing housing production lines. Realizes continuous workflow between pre-cleaning machining and post-cleaning assembly, reducing workpiece transfer delays and improving production continuity.

• Stable Robotic Positioning Accuracy:Robotic workpiece handling maintains positioning accuracy of ±1mm during loading/unloading and cleaning. Ensures consistent cleaning intensity and coverage for each housing, avoiding batch quality inconsistencies caused by manual operation.

• Adaptive Housing Compatibility:Adjustable cleaning parameters (e.g., CNC pressure, fixed-point position) and drying intensity adapt to different sizes and structures of industrial housings. Eliminates the need for separate equipment for diverse workpieces, enhancing production flexibility.
