Cylinder Head Final Cleaning Machine Shimada Big Bird Cleaning Machine CH

Product Introduction:Cylinder Head Final Cleaning Machine

A professional industrial cleaning solution tailored for the final cleaning process of cylinder heads—critical components in automotive, marine, and heavy machinery engines. It integrates ground rail robotic handling, multi-mode deep cleaning, and thorough drying to meet the strict cleanliness and quality demands of cylinder head final assembly, helping manufacturers ensure engine reliability and optimize mass production workflows.

Key Features

• 230-Second Final-Cleaning Cycle

• Completes one final cleaning cycle in 230 seconds per piece, perfectly matching the rhythm of cylinder head mass production lines. Balances thorough final cleaning with production efficiency, avoiding delays in subsequent assembly processes.

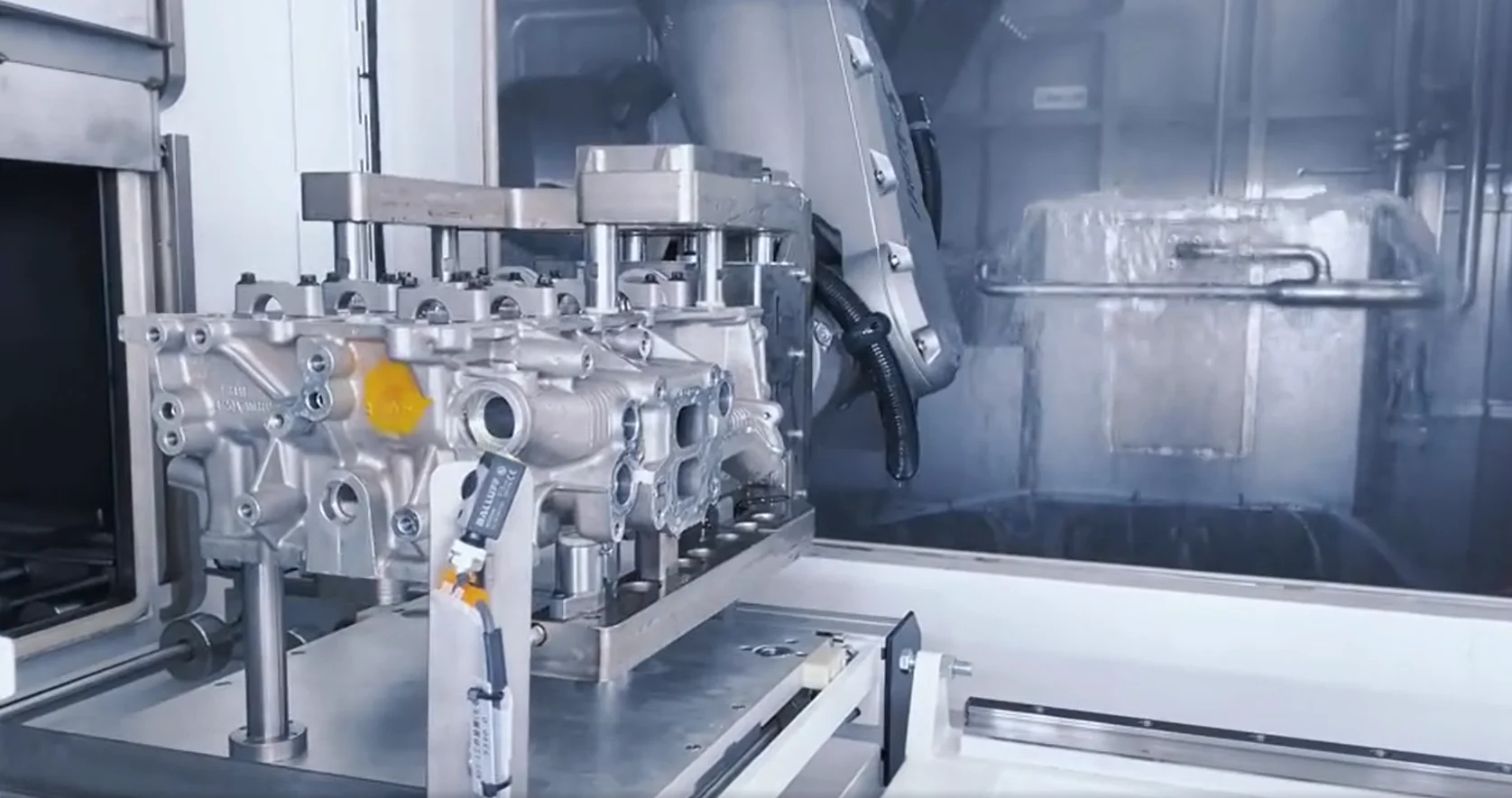

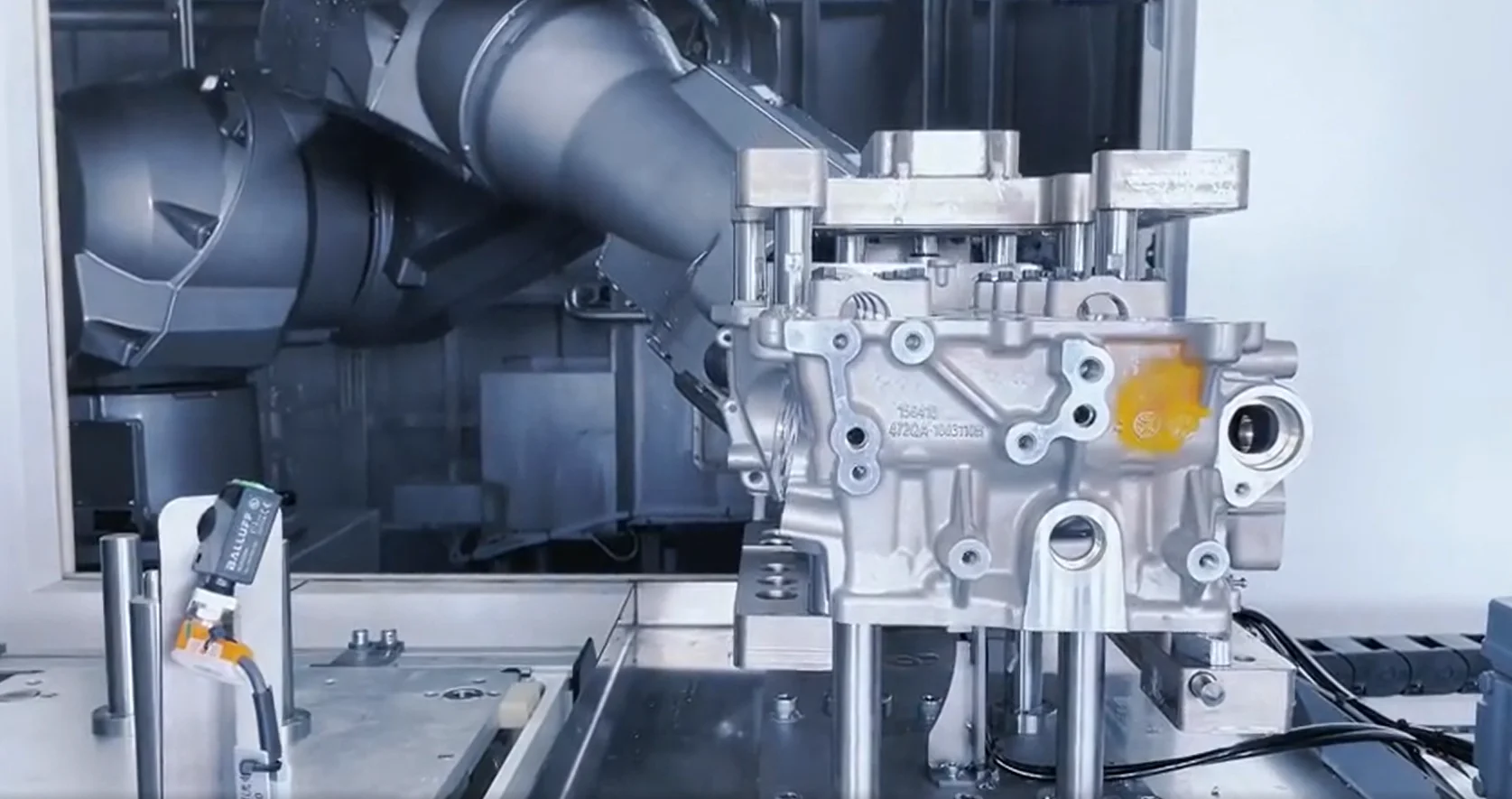

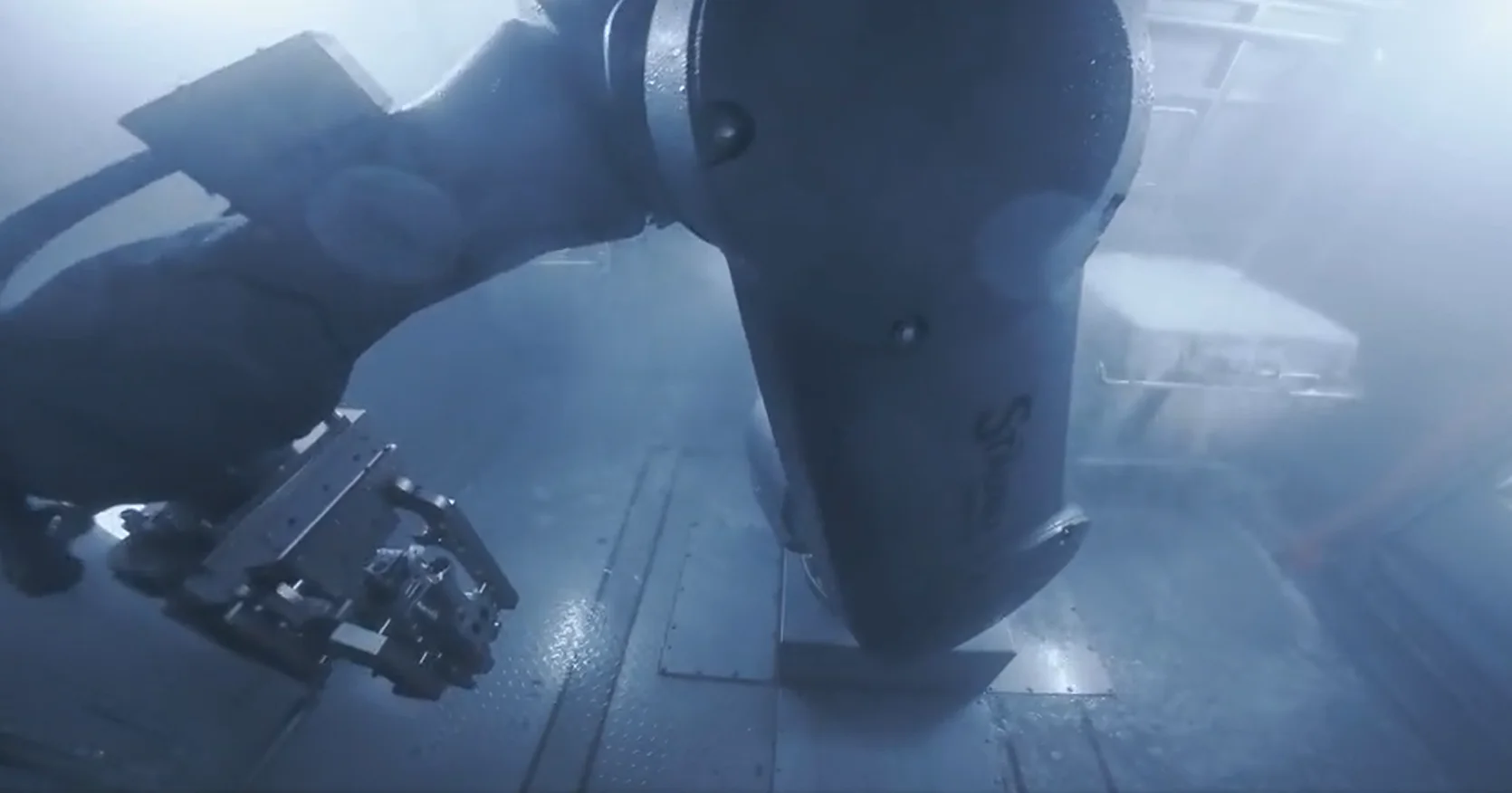

• Ground Rail Robotic Loading/Unloading

• Adopts ground rail robotic workpiece handling for loading and unloading. The rail-mounted design enables flexible movement, precise positioning, and stable transfer of cylinder heads—minimizing manual intervention, reducing labor intensity, and preventing scratches on precision surfaces (e.g., valve seats).

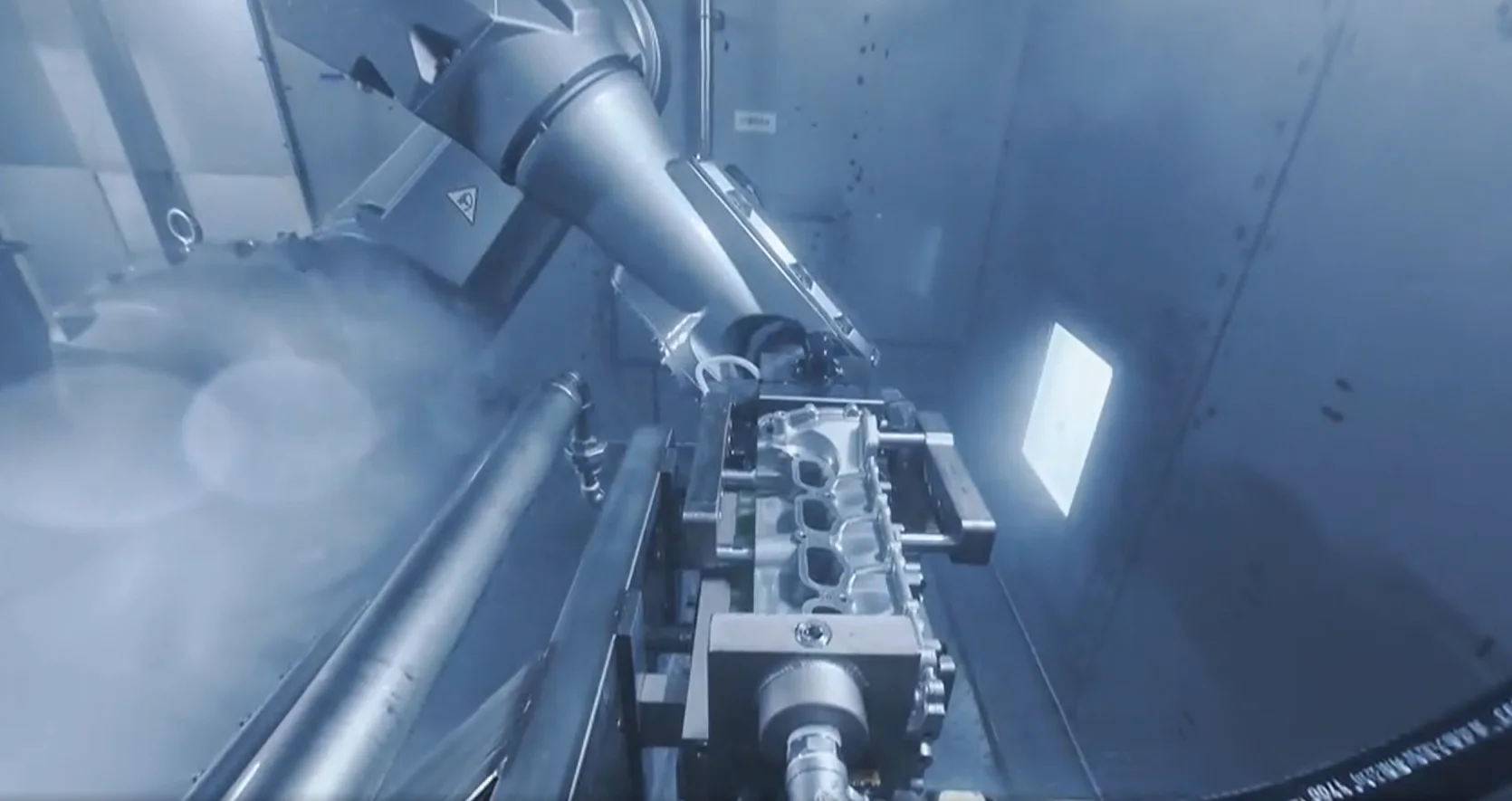

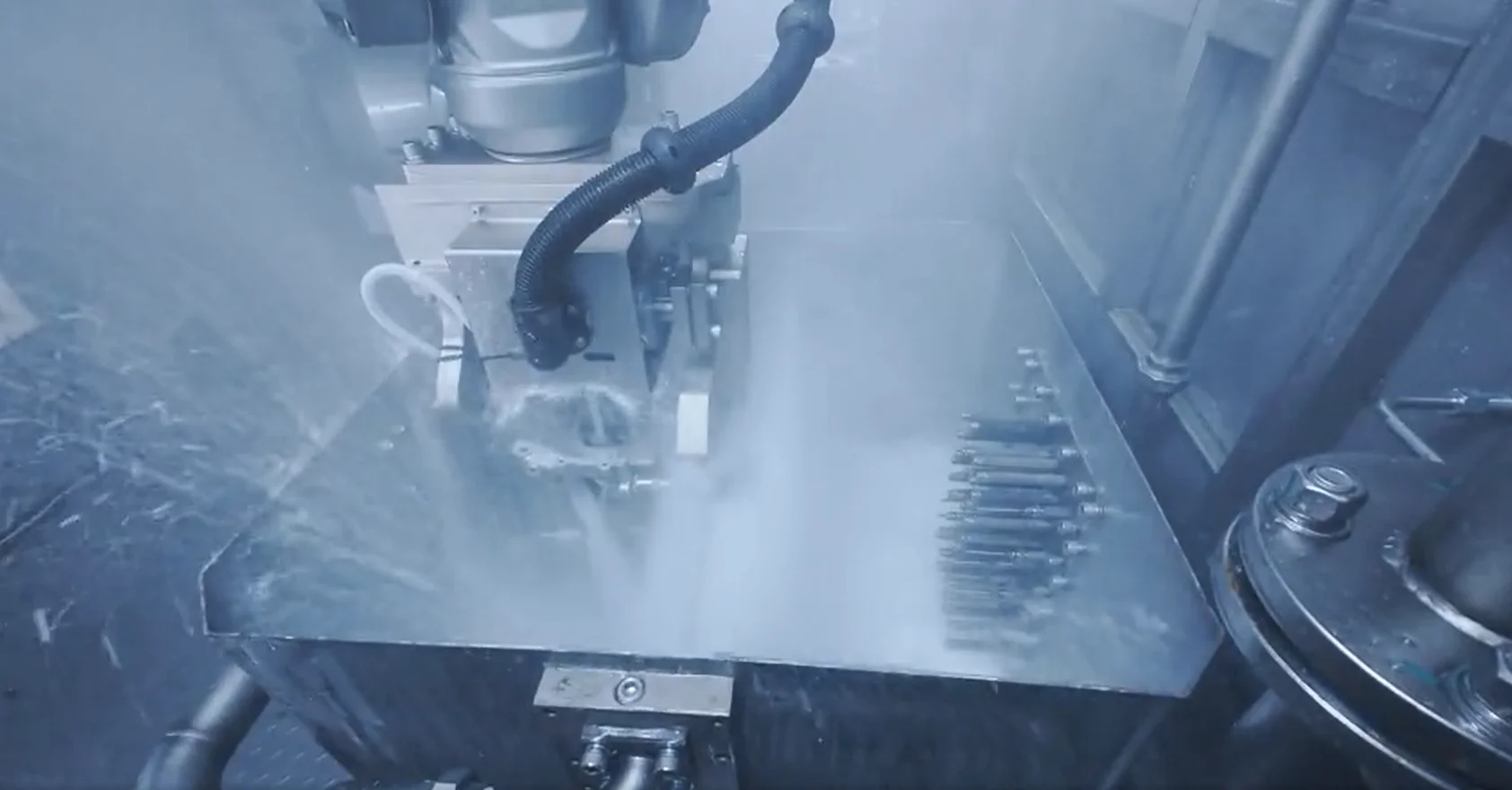

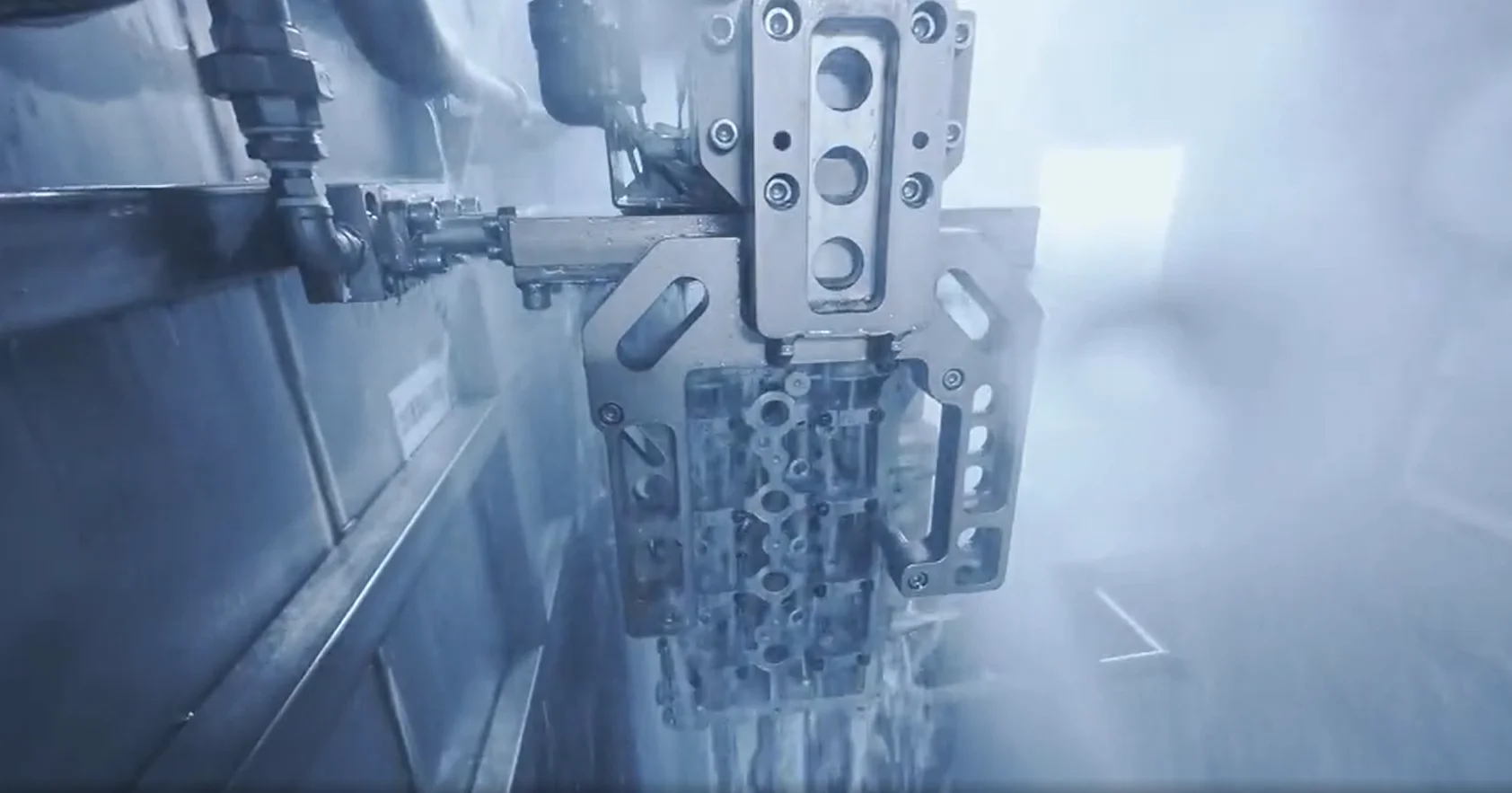

• 4-Mode Deep Final Cleaning

• Combines turbulent flow cleaning, fixed-point cleaning, plugging pressure cleaning, and high-pressure cleaning. Turbulent flow covers the entire surface; fixed-point cleaning targets hard-to-reach areas (e.g., injector holes); plugging pressure cleaning secures cavities for focused decontamination; high-pressure jets remove stubborn metal shavings—ensuring final cleanliness meets assembly standards.

• Triple-Stage Complete Drying

• Features air blowing, high-efficiency drying, and vacuum drying. The multi-step process ensures cylinder heads are completely dry, eliminating residual moisture in narrow passages (e.g., oil galleries) and preventing rust or assembly defects caused by dampness.

• 5-20mg Graded Cleanliness

• Achieves a cleanliness standard of 5-20mg (varies by position), effectively removing oil residues, coolant deposits, and abrasive particles from cylinder head surfaces and internal channels. Meets the strict final-cleaning requirements for high-performance engine assembly.

key product benefits

• This Cylinder Head Final Cleaning Machine stands out for its precision, final-assembly adaptability, and automated efficiency. Its 4-mode deep cleaning, strict particle control, and ground rail robotic handling perfectly address the unique final-cleaning challenges of cylinder heads—from complex internal passages to precision assembly surfaces. For manufacturers producing engines or cylinder heads, it is a reliable tool to ensure final product quality, reduce post-assembly defects, and align with high-standard mass production demands.

  The above product parameters are for reference only. For detailed information, please contact us by phone.

Durable Industrial Grade Build

• ≤500μm Particle Control:Strictly controls particle size to below 500μm in all cleaned areas. Prevents large particles from entering engine systems during assembly, avoiding premature wear of components (e.g., pistons, valves) and ensuring long-term engine operation stability.

• Robotic Precision Positioning:Ground rail robots maintain a positioning accuracy of ±0.3mm during handling and cleaning. Ensures consistent cleaning intensity and coverage for each cylinder head, avoiding batch quality inconsistencies—critical for the final quality control of engine components.

• Final-Assembly Ready Design:Optimized cleaning and drying processes are tailored for the final stage before cylinder head assembly. Eliminates the need for secondary cleaning, directly connecting to engine assembly lines and streamlining the overall production workflow.
