Cylinder Head Deburring Robotic Cleaning Machine Shimada Big Bird Cleaning Machine CH

Product Introduction:Cylinder Head Deburring Robotic Cleaning Machine

A professional industrial solution tailored for cylinder heads—core components in automotive and heavy machinery engines. It integrates robotic deburring, automated handling, and multi-mode deep cleaning to remove burrs and contaminants simultaneously, meeting strict precision requirements for cylinder head assembly while optimizing production efficiency.

Key Features

• 80-Second Efficient Cycle

• Completes one deburring + cleaning cycle in 80 seconds per piece, perfectly matching the high-speed rhythm of cylinder head mass production lines. Shortens combined processing time, supporting continuous assembly workflows without compromising quality.

• Automated & Robotic Loading/Unloading

• Adopts automatic loading/unloading paired with robotic workpiece handling. The fully automated system minimizes manual intervention, reduces labor intensity, and prevents scratches on precision surfaces (e.g., valve seats, injector holes) during transfer.

• 4-Mode Deburring & Cleaning

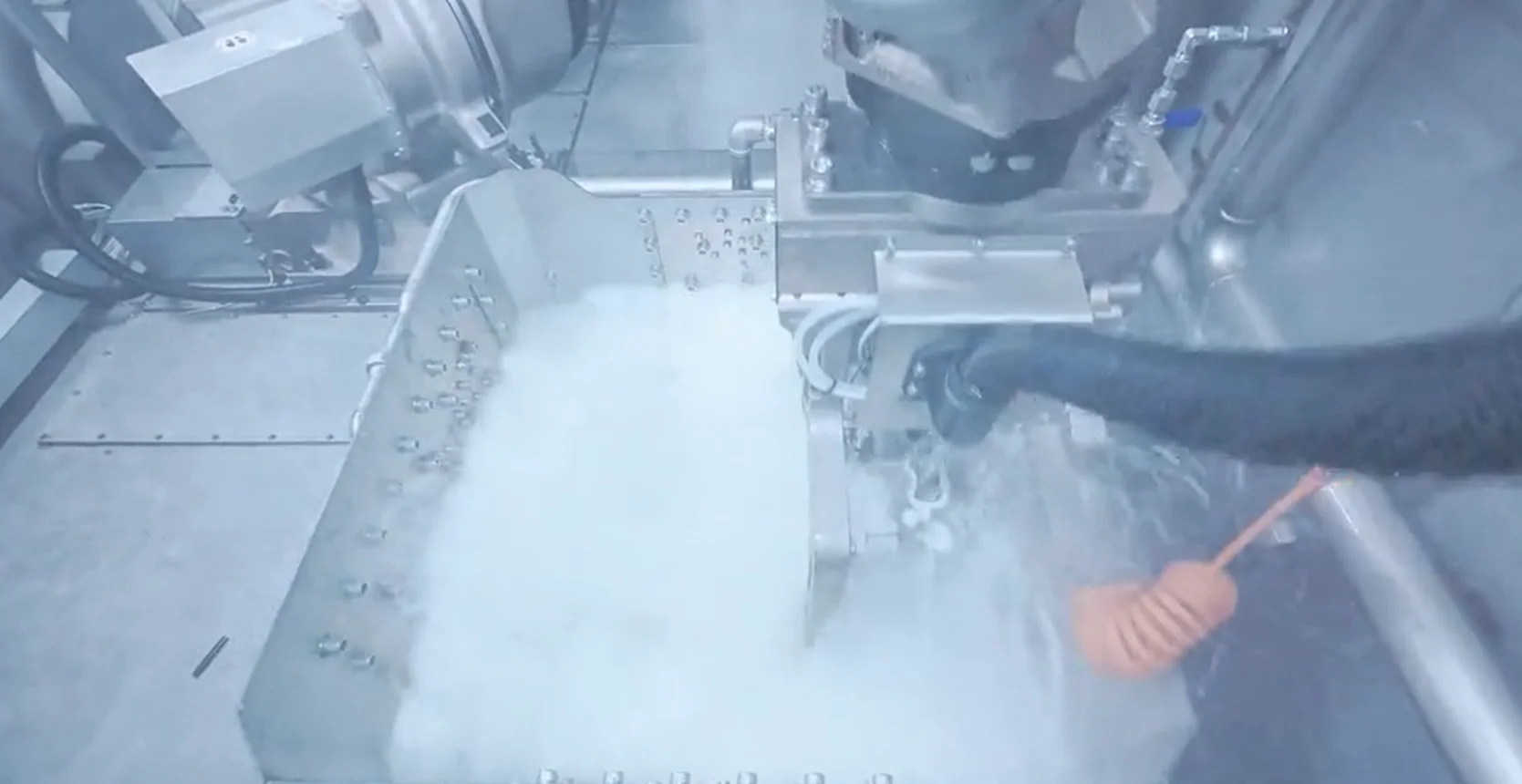

• Combines turbulent flow cleaning, fixed-point cleaning, plugging pressure cleaning, and high-pressure cleaning. High-pressure jets target and remove burrs from machining edges; other modes clear metal shavings, oil residues, and debris—achieving dual effects of deburring and cleaning.

• Triple-Stage Complete Drying

• Features air blowing, high-efficiency rotary drying, and vacuum drying. The multi-step process ensures cylinder heads are completely dry, eliminating residual moisture in internal channels (e.g., oil galleries, cooling passages) and preventing rust or assembly defects.

• 5-30mg Graded Cleanliness

• Achieves a cleanliness standard of 5-30mg (varies by position), adapting to different precision requirements across cylinder head zones. Effectively removes post-deburring residues and contaminants to meet engine assembly standards.

key product benefits

• This Cylinder Head Deburring Robotic Cleaning Machine combines efficient deburring and deep cleaning in one system, addressing two key post-machining needs of cylinder heads. Its 80-second fast cycle, robotic precision, and graded cleanliness control perfectly meet the strict requirements of engine component manufacturing. For manufacturers aiming to streamline workflows, improve cylinder head precision, and reduce production costs, it is a reliable, all-in-one solution to support high-speed mass production.

  The above product parameters are for reference only. For detailed information, please contact us by phone.

Durable Industrial Grade Build

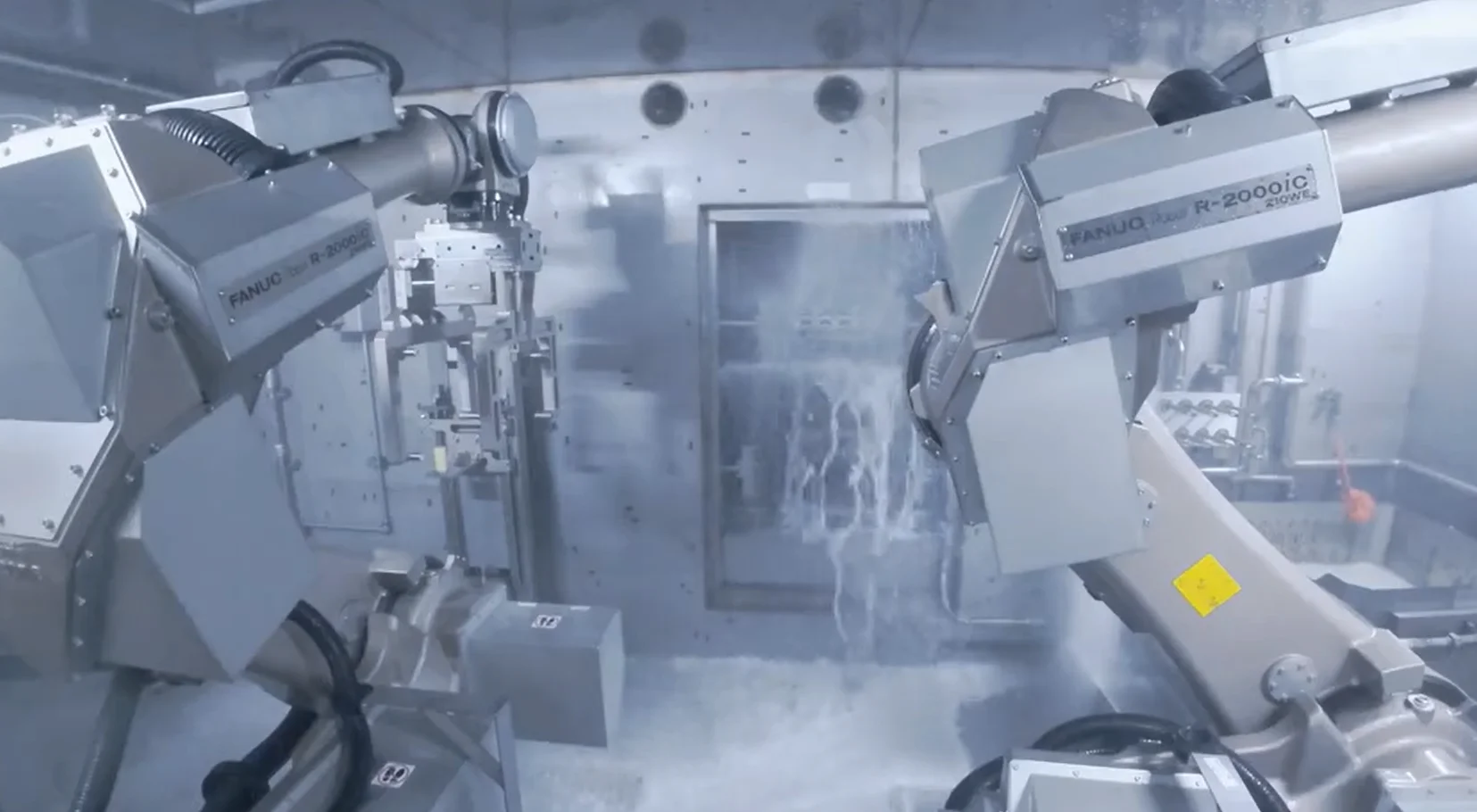

• Robotic Deburring Precision:Robotic systems maintain deburring accuracy of ±0.1mm, ensuring consistent removal of burrs from small holes, edges, and complex structures. Avoids over-deburring or missed burrs, safeguarding cylinder head dimensional precision.

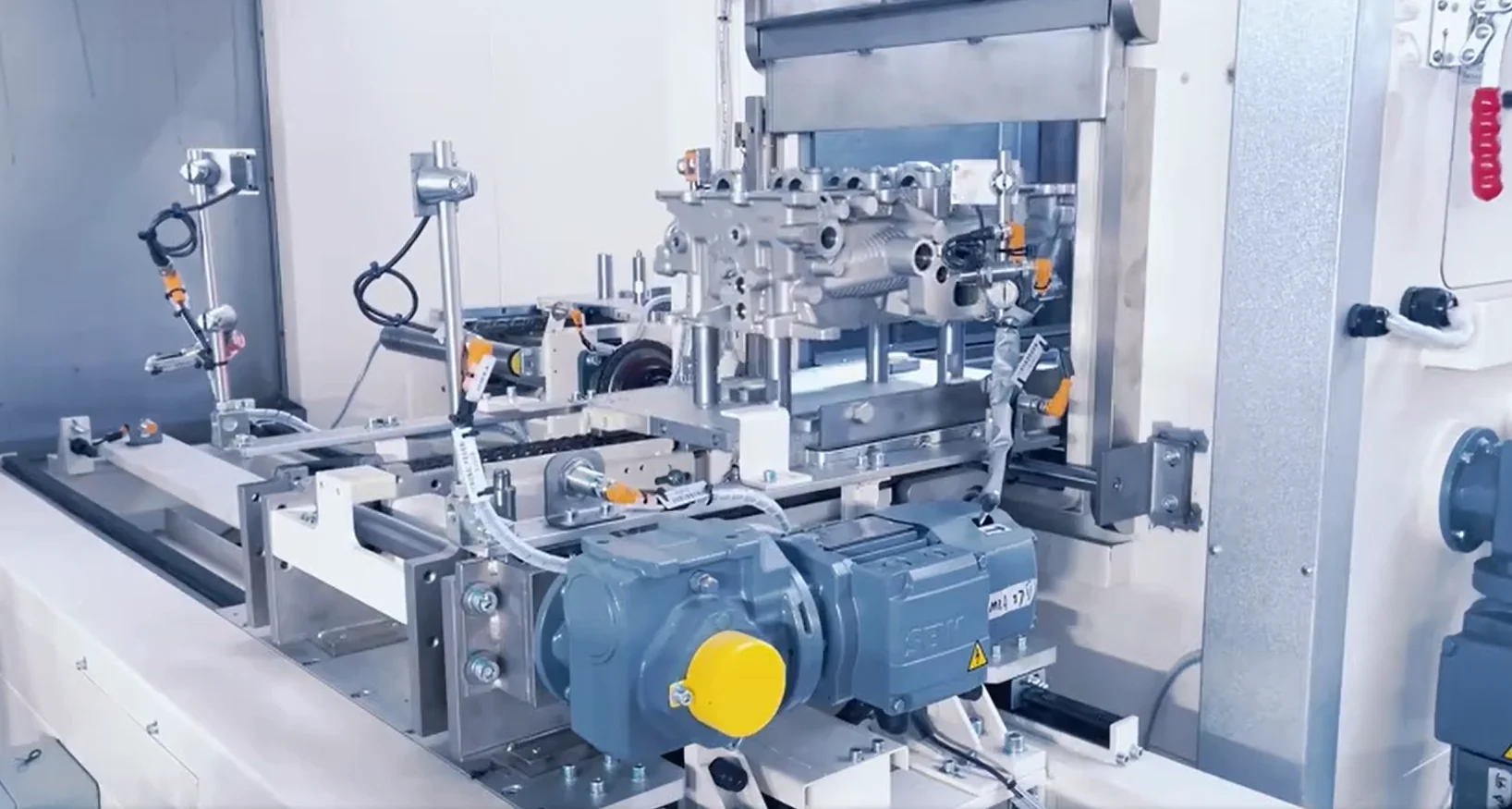

• Seamless Production Line Integration:Automatic loading/unloading design enables smooth connection with existing cylinder head production workflows (e.g., post-machining, pre-assembly). Reduces workpiece transfer delays and improves overall production line continuity.

• Multi-Model Adaptability:Adjustable robotic parameters and cleaning settings support different cylinder head models (varying sizes, hole positions). Eliminates the need for extensive retooling when switching workpieces, enhancing flexibility for multi-model manufacturing.
