Description
Product Introduction:Crankshaft Cleaning Center
A professional industrial cleaning solution tailored for crankshafts—core components in automotive, marine, and heavy machinery engines. Equipped with a 6-axis waterproof robot and high-pressure cleaning capabilities, it integrates customizable performance and stable operation to meet strict cleanliness demands of crankshaft manufacturing, ensuring precision and efficiency in mass production.
Product Strengths |
High-Pressure 6-Axis Robotic Cleaning (10MPa-45MPa) |
Product Advantages |
Customizable Crankshaft Compatibility |
Power Supply |
380V |
Total Power |
46KW |
Key Features

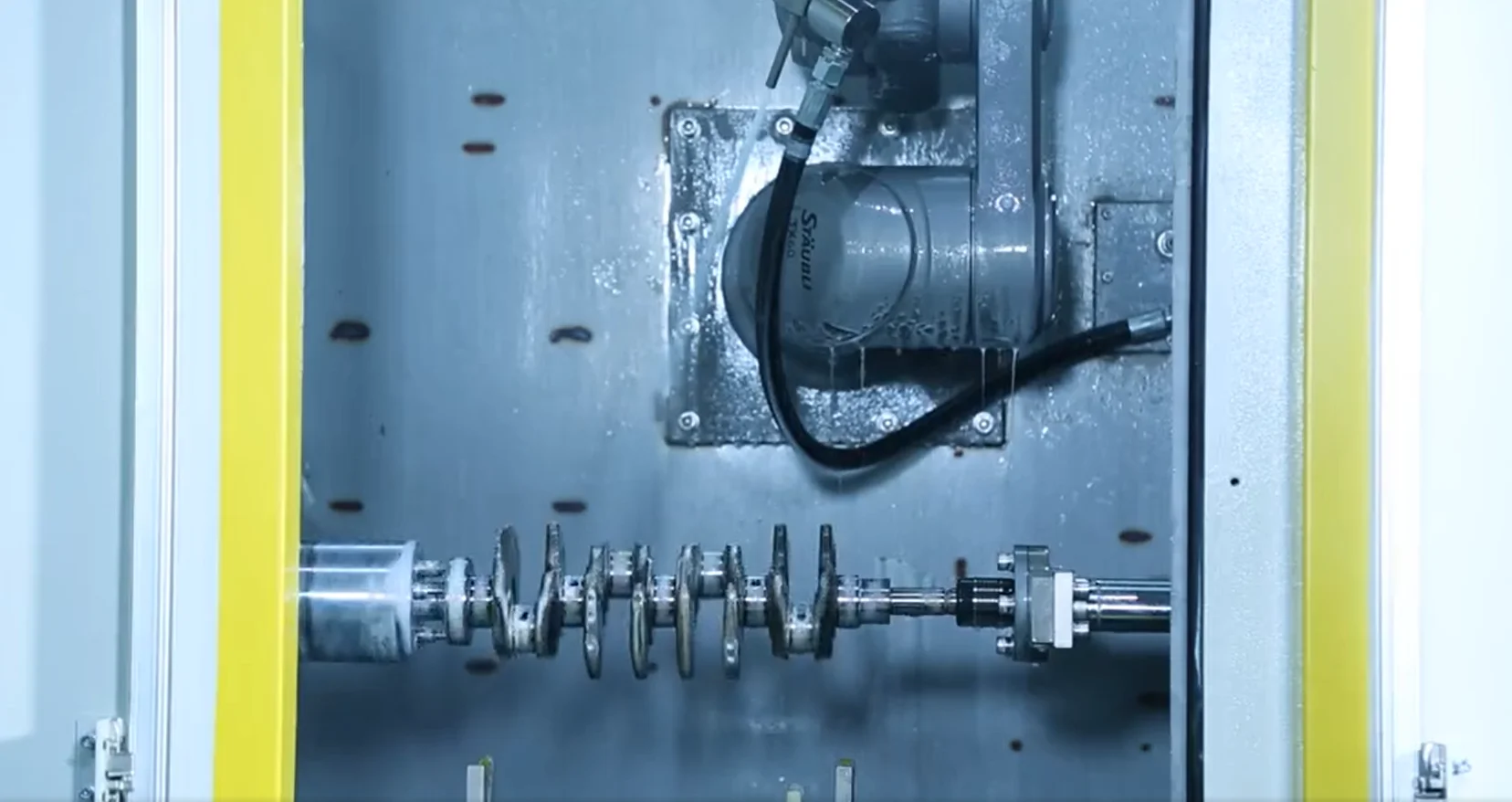

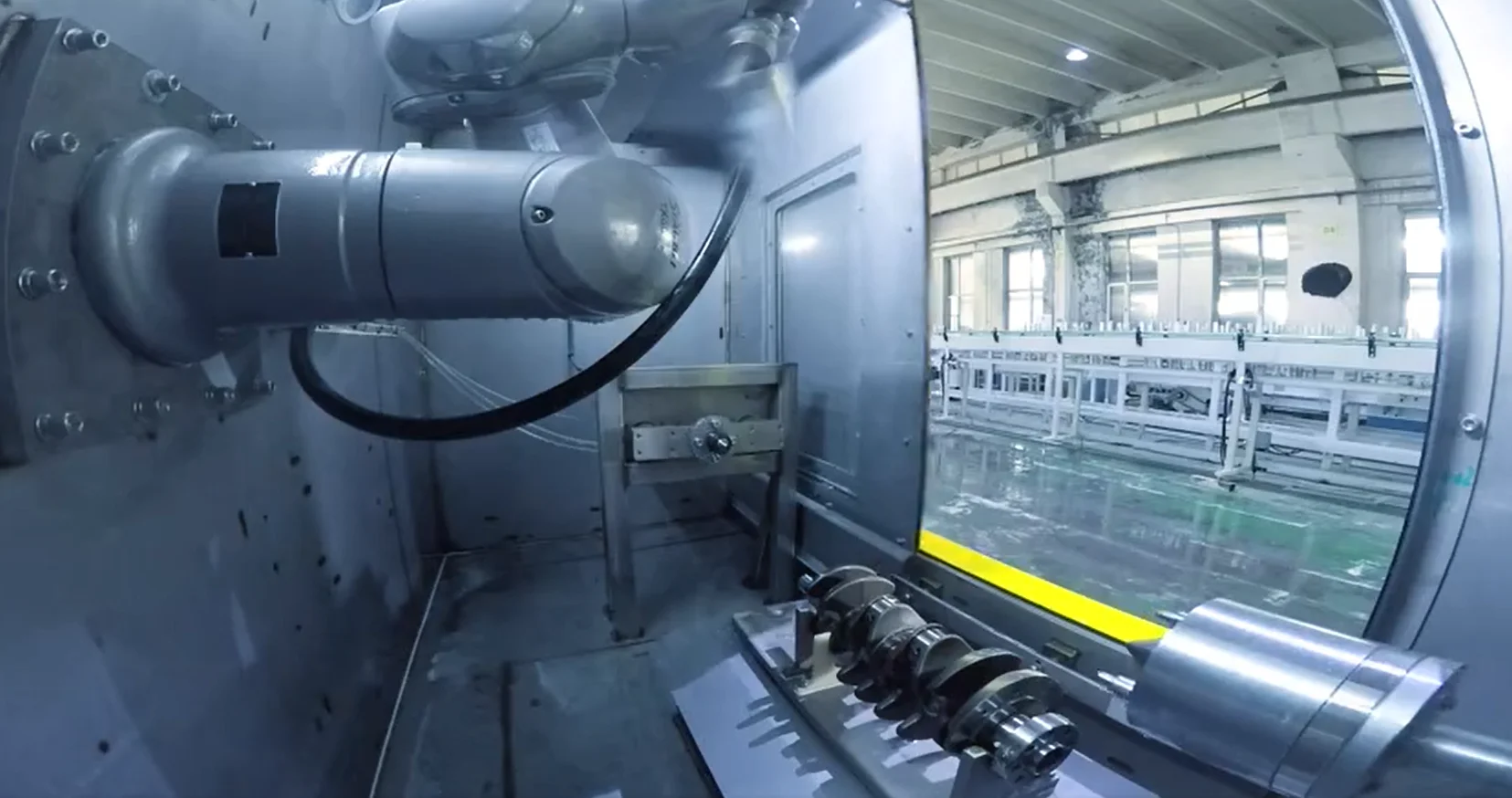

6-Axis Waterproof Robot
Comes with a 6-axis waterproof robot, enabling flexible and precise positioning for crankshaft cleaning. The waterproof design adapts to wet industrial environments, avoiding moisture-induced malfunctions and ensuring long-term stable operation—critical for consistent crankshaft processing.

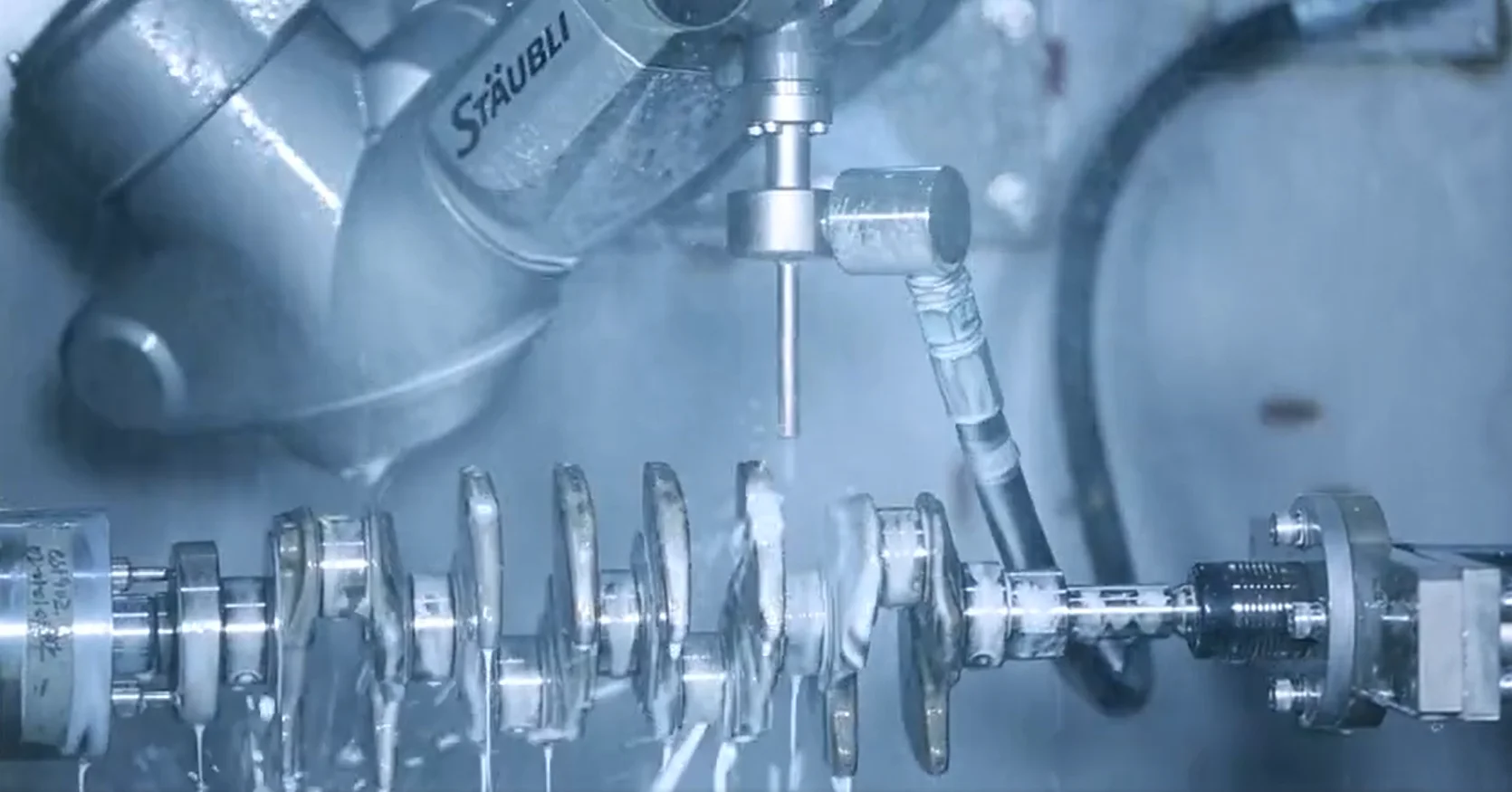

High Customizable Cleaning Pressure (10MPa-45MPa)
Offers adjustable cleaning pressure ranging from 10MPa to 45MPa (customizable), capable of removing stubborn metal shavings and oil residues from crankshaft journals, oil passages, and other hard-to-reach areas. Adapts to different contamination levels and crankshaft material requirements.
100g-20kg Workpiece Compatibility
Supports cleaning of crankshafts and related components weighing 100g to 20kg, covering small to medium-sized crankshaft models (e.g., automotive 4-cylinder, marine auxiliary engine crankshafts). Eliminates the need for multiple machines for diverse workpiece weights.
380V Stable Power & 46KW Total Power
Operates on a 380V industrial power supply with a total power of 46KW, providing sufficient energy for high-pressure cleaning, heating (if needed), and robotic movement. Maintains consistent performance during long-term continuous crankshaft production.
700L Large-Capacity Water Tank
Features a 700L water tank, reducing frequent refilling and improving cleaning efficiency. The large capacity also supports stable water temperature control (for heated cleaning below 60℃) and ensures uniform water supply for the high-pressure cleaning system.
key product benefits
-
This Crankshaft Cleaning Center excels in high-pressure cleaning capability, robotic precision, and customization—tailored to the unique needs of crankshaft manufacturing. Its 6-axis waterproof robot, adjustable high pressure (10MPa-45MPa), and broad workpiece compatibility ensure thorough cleaning of crankshafts, while customizable parameters and compact design adapt to diverse production scenarios. For manufacturers aiming to enhance crankshaft cleaning quality, optimize production efficiency, and meet strict industry standards, it is a reliable and high-performance solution.
The above product parameters are for reference only. For detailed information, please contact us by phone.
Durable Industrial Grade Build
Customizable Key Parameters:Offers customization for robot max load (up to 34KG), cycle time (60-90S), cleaning accuracy (1mg/kg), filtration accuracy (10μ-50μ), and cleaning temperature. Adapts to different crankshaft models, machining processes, and production line rhythms.
Compact 3100mm×2100mm×2400mm Dimension:With an overall size of 3100mm×2100mm×2400mm, the cleaning center has a space-saving design. Easily fits into existing crankshaft production layouts without requiring extensive workshop reconstruction, optimizing floor space usage.
Approx. 4.5T Sturdy Build:Boasts a total weight of about 4.5T, indicating a robust and stable structure. Prevents vibration during high-pressure cleaning or robotic operation, ensuring precise cleaning positioning and avoiding damage to crankshaft precision surfaces (e.g., bearing seats).
