Heavy Duty Engine Block Cleaning Machine for Large Diesel Engines | 30 Ton Large Component Cleaning System

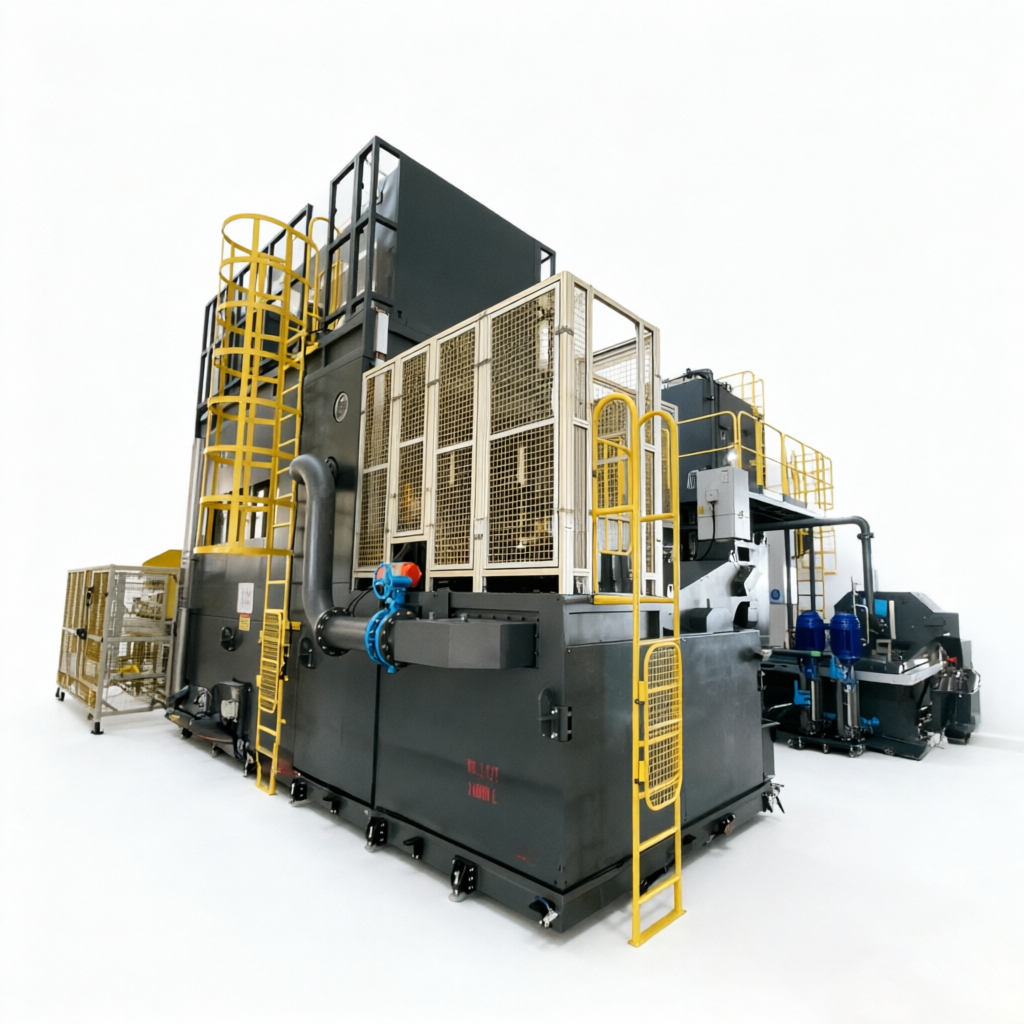

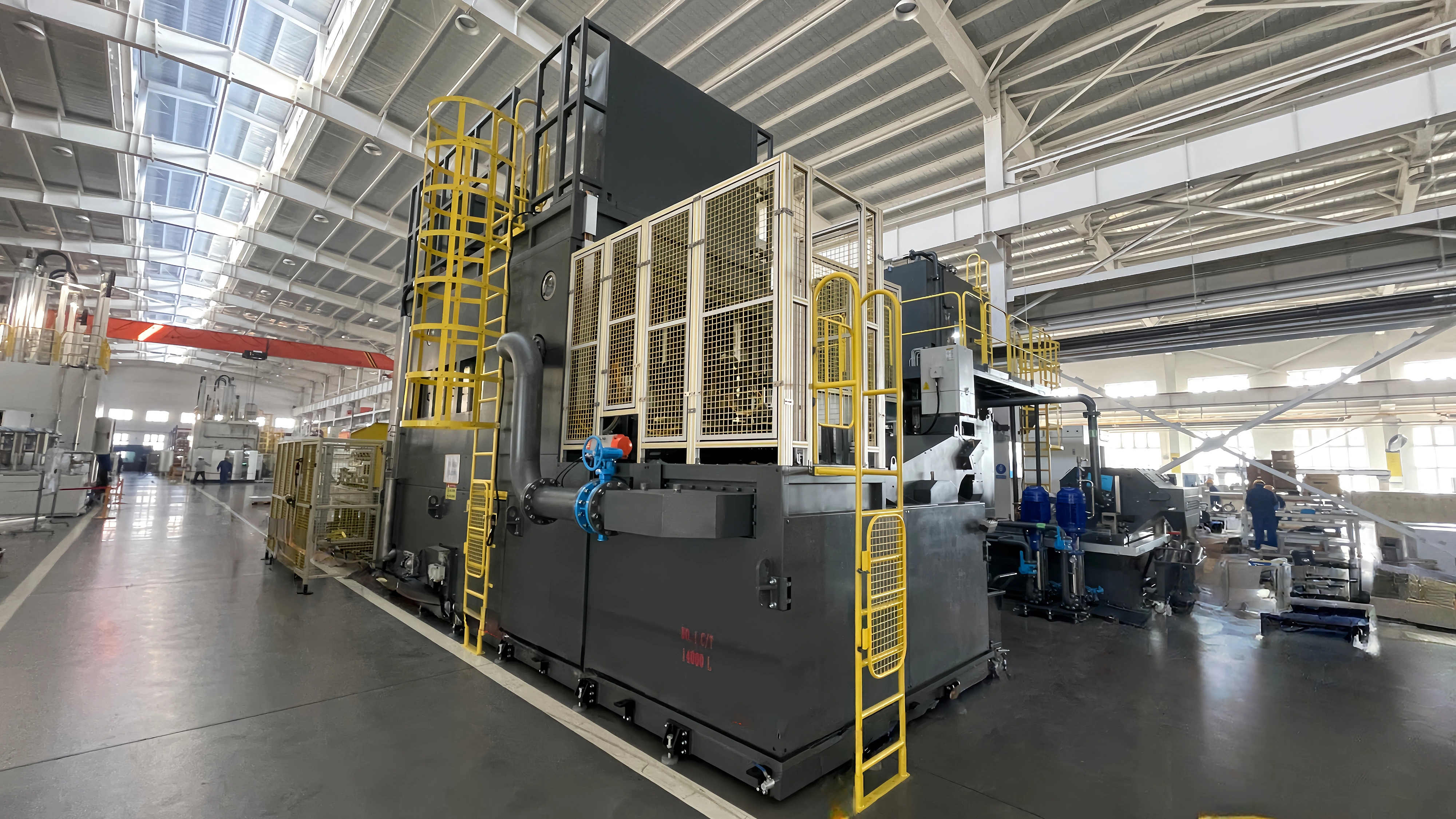

30 Ton Heavy Duty Engine Block Cleaning Machine for Large Industrial Components

Shimada Big Bird Heavy Duty Engine Block Cleaning Machine is a customized industrial cleaning system developed for oversized engine blocks and heavy mechanical components.

The equipment is designed for large diesel engine blocks, marine engine components and other heavy industrial parts that require specialized handling and cleaning solutions.

Compared with conventional cleaning equipment, this system focuses on:

• Extremely large workpiece handling
• Complex component surface cleaning
• Heavy-duty industrial applications
• Customized cleaning process development

Product Definition

A Heavy Duty Engine Block Cleaning Machine is an industrial cleaning system designed to remove manufacturing contaminants from large engine blocks after machining or manufacturing processes.

Typical contaminants include:

• Machining oil
• Metal particles
• Processing residues
• Dust and foreign materials

The equipment helps improve:

• Assembly reliability
• Component cleanliness
• Manufacturing consistency

Large Component Cleaning Capability

Maximum Workpiece Weight: 30 Tons

The system is developed for ultra-large components including:

• Heavy marine diesel engine blocks
• Large industrial engine components
• Power equipment components

The cleaning solution includes customized:

• Transportation systems
• Positioning structures
• Cleaning chambers
• Spray systems

Verified Application Data

Application Case: Heavy Duty Marine Diesel Engine Block Cleaning

Component:
Heavy Duty Marine Diesel Engine Block & Crankshaft

Maximum Workpiece Weight:
30 Tons

Cycle Time:
60 minutes

Loading Method:
Trolley transportation system

Cleaning Process:

• Scanning spray cleaning
• Targeted cleaning for critical areas

Drying Process:

• Scanning spray air drying
• Manual drying for specific areas

Application:

Heavy marine engine manufacturing

Cleaning Process

1. Heavy Component Loading

Large components enter the cleaning chamber through customized trolley transportation systems.

The loading system is designed for:

• Heavy weight components
• Stable movement
• Safe positioning

2. Scanning Spray Cleaning

The cleaning system performs large-area scanning spray cleaning to remove contaminants from component surfaces.

3. Targeted Area Cleaning

Special areas requiring additional cleaning can be processed through customized cleaning methods.

Including:

• Oil passages
• Machined surfaces
• Critical assembly areas

4. Drying Process

The system applies:

• Scanning air drying
• Targeted drying

to remove residual cleaning liquid.

Application Range

Marine Engine Manufacturing

Suitable for:

• Marine diesel engine blocks
• Large crankcase components
• Heavy ship power components

Power Generation Equipment

Suitable for:

• Generator engine components
• Large mechanical structures

Heavy Industrial Manufacturing

Suitable for:

• Large cast components
• Heavy machined parts

Key Technology Features

30 Ton Heavy Workpiece Handling Capability

Customized transportation and positioning solutions support ultra-large industrial components.

Large Scale Cleaning Chamber Design

The system can be customized according to:

• Component dimensions
• Weight
• Cleaning requirements

Flexible Cleaning Process

Different cleaning methods can be combined:

• Scanning spray cleaning
• Targeted cleaning
• High-pressure cleaning
• Internal passage cleaning

Customized Industrial Automation

The system can integrate:

• Transportation systems
• Control systems
• Cleaning systems
• Drying systems

Technical Specifications

Complete Cleaning Solution

Shimada Big Bird provides customized heavy-duty cleaning solutions including:

Equipment Engineering

Customized according to:

• Workpiece size
• Weight
• Structure
• Production requirements

Process Development

Including:

• Cleaning method selection
• Process optimization
• Cleanliness verification

System Integration

Including:

• Loading system
• Cleaning chamber
• Drying system
• Control system

Frequently Asked Questions

What is the maximum workpiece weight of this cleaning system?

The system can be customized for ultra-large components. Existing applications include heavy marine diesel engine blocks with maximum workpiece weight up to 30 tons.

What components can this machine clean?

Suitable for:

• Heavy diesel engine blocks
• Marine engine components
• Large industrial mechanical parts

How are large components loaded?

Large components can be transported using customized systems such as trolley transportation and heavy-duty handling solutions.

Can the cleaning process be customized?

Yes. Cleaning methods, transportation systems and equipment structures can be customized according to component requirements.

Large marine and industrial components require specialized cleaning equipment due to their extreme size and weight.

Shimada Big Bird develops customized heavy-duty cleaning systems integrating large component handling, scanning spray cleaning and targeted cleaning technologies to meet demanding industrial manufacturing requirements.
