Extra-Large Crankshaft Precision Cleaning Machine Shimada Big Bird Cleaning Machine CS Washing Machine

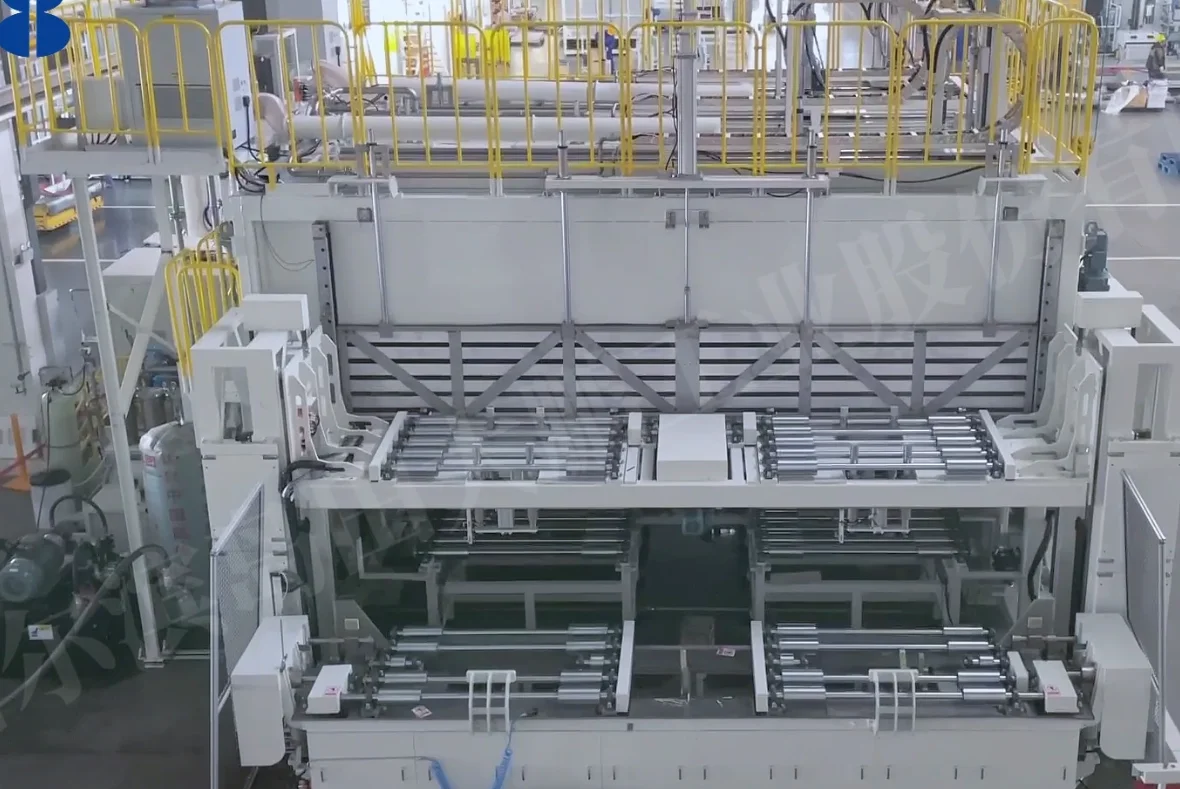

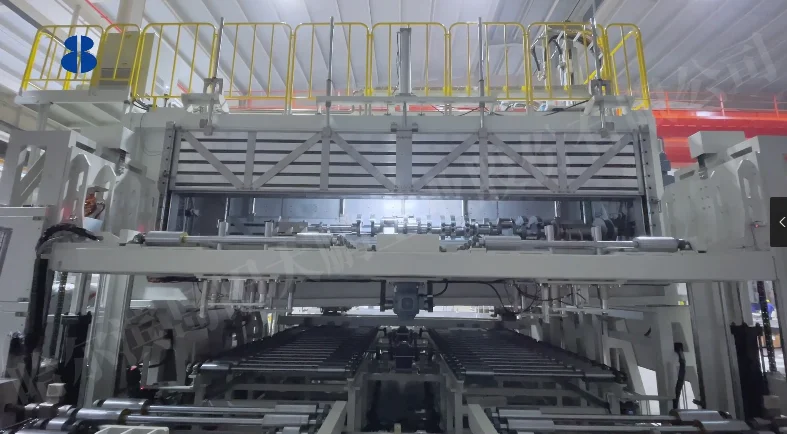

Product Introduction: Large-Scale Crankshaft Cleaning Machine

Engineered specifically for the cleaning of extra-large crankshaft workpieces, this industrial-grade equipment delivers high-precision, automated cleaning performance across all contamination types, completed within a single operational cycle. Driven by advanced industrial-grade technology, it achieves measurement-level accuracy, ensuring consistent, objective cleaning results while eliminating inconsistencies associated with manual operations.

Key Features

• 4-in-1 Multi-Mode Cleaning for 90mg Precision Standards

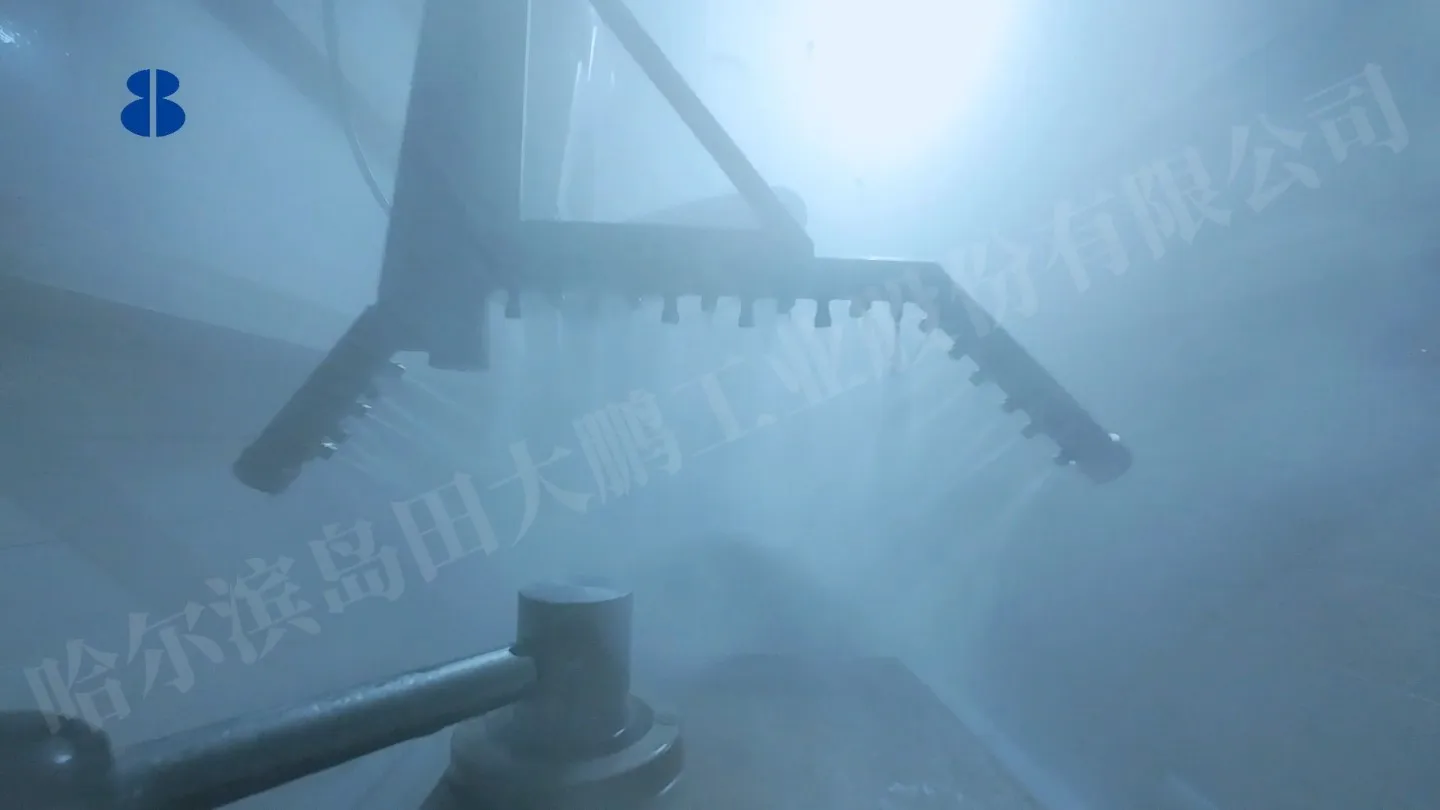

• Integrates high-pressure jet cleaning, full-surface cleaning, plugging pressure cleaning, and final rinsing to address all forms of contaminants. High-pressure streams (reaching up to 80 bar, an industry-standard for heavy-duty applications) remove thick oil deposits and metal chips; full-surface cleaning ensures comprehensive coverage of external surfaces; plugging pressure technology clears debris from narrow internal passages; and final rinsing washes away loosened contaminants—guaranteeing a consistent final cleanliness level of 90mg, a benchmark that manual cleaning methods can rarely achieve.

• Scanning Air Drying for Residue-Free Protection & Rust Prevention

• Employs scanning air drying technology with adjustable airflow speed (ranging from 5-10 m/s). The air nozzle traverses the crankshaft surface evenly, delivering uniform high-velocity dry air to eliminate surface moisture entirely. This not only ensures no residual cleaning agents remain but also prevents rust or oxidation during storage and subsequent processing, safeguarding the crankshaft’s precision-machined surfaces.

• Tailored Design for Extra-Large Crankshaft Specifications

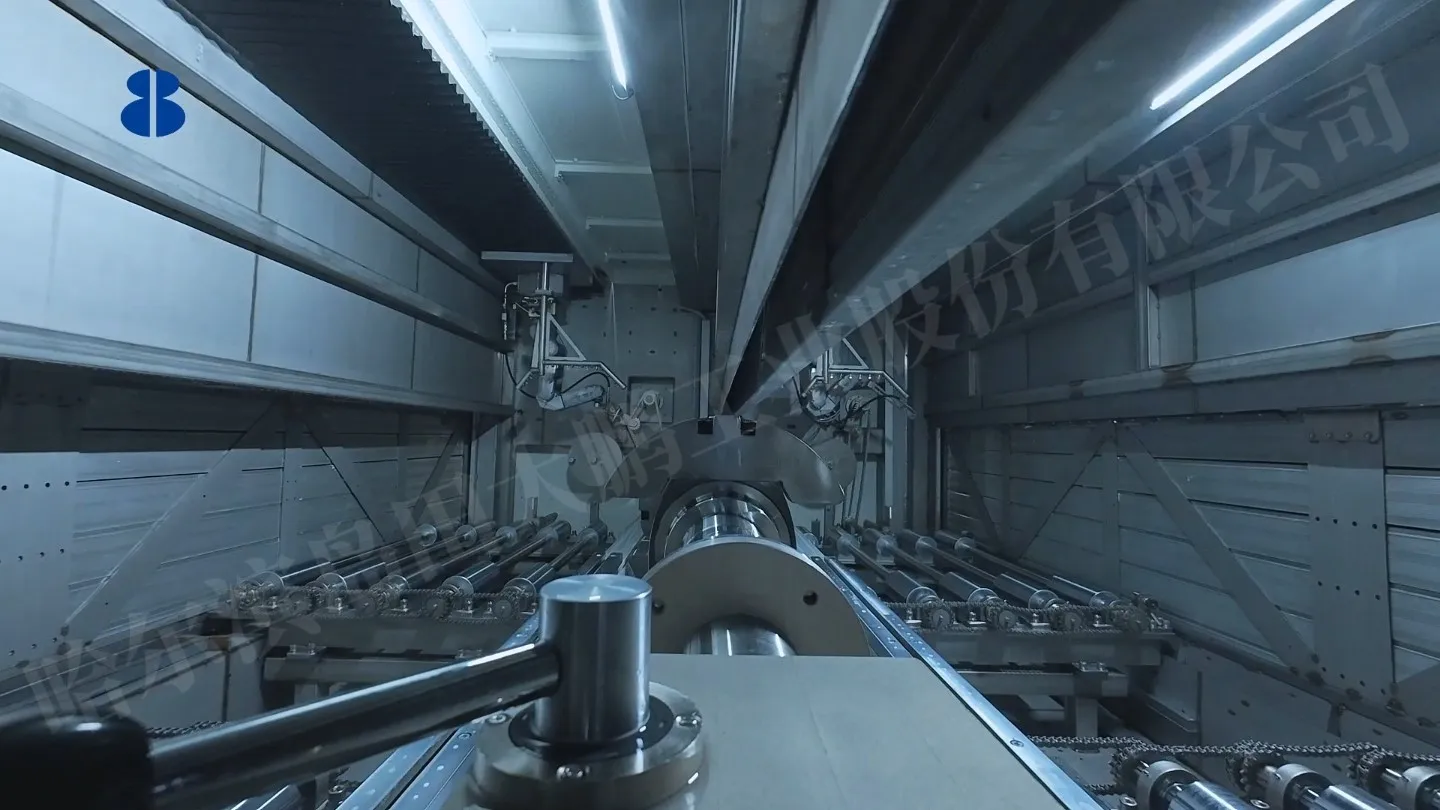

• Optimized exclusively for extra-large crankshafts (suitable for models with lengths up to 3 meters, commonly used in heavy machinery and industrial equipment). The machine’s internal chamber and cleaning stations are custom-sized to accommodate bulky, heavy workpieces, minimizing the risk of damage caused by improper positioning during the cleaning process.

• Loading/Unloading for Heavy-Duty Workpieces

• Features a manual loading/unloading system equipped with anti-slip guide rails and adjustable support blocks. The guide rails reduce friction when maneuvering heavy crankshafts (weighing up to 500 kg), while the adjustable support blocks can be modified to fit various crankshaft configurations—enabling operators to handle large workpieces effortlessly without the need for additional lifting equipment.

• Balanced 30-Minute Cycle for Medium-Batch Productivity

• With a 30-minute per-unit cycle time, the machine strikes an optimal balance between thorough cleaning and operational efficiency. Unlike rapid but incomplete cleaning equipment or slow high-precision alternatives, it is ideally suited for medium-batch production lines and maintenance facilities that require both superior quality and steady output.

key product benefits

• This large-scale crankshaft cleaning machine distinguishes itself through its ability to handle extra-large workpieces with exceptional precision and reliability. Its multi-stage cleaning process ensures deep decontamination, while the scanning air drying system guarantees residue-free results—making it an indispensable tool for manufacturers and maintenance facilities prioritizing workpiece quality and operational practicality.

Adjustable Cleaning Intensity

• Durable Components for Long-Term Industrial Reliability:Critical components (including high-pressure pumps and air drying nozzles) are constructed from corrosion-resistant 304-grade stainless steel. This material resists degradation from cleaning agents and industrial dust, extending the machine’s service life to 5-8 years under regular maintenance—reducing long-term replacement and operational costs for users.

• Adjustable Cleaning Intensity for Variable Contamination Levels:Allows operators to adjust high-pressure cleaning pressure and rinsing duration based on the crankshaft’s contamination severity. For lightly soiled workpieces, lower pressure (40-50 bar) and shorter rinsing times can be utilized to conserve energy; for heavily contaminated units, higher pressure (60-80 bar) ensures thorough deep cleaning—enhancing operational flexibility across diverse scenarios.

• Low-Maintenance Design for Uninterrupted Operation:The machine’s structure is engineered for ease of maintenance.critical components (such as filters and nozzles) are fitted with quick-release covers. Operators can replace filters or clean nozzles in 15-20 minutes without disassembling large machine parts, minimizing downtime and ensuring continuous operation of production lines.
