Product Introduction:Automotive Axle Housing Precision Cleaning Machine

A professional industrial cleaning system tailored for middle and rear axle housings—vital components in automotive and heavy-duty machinery. Integrated with flexible robotic technology, it combines multi-stage cleaning processes and thorough drying capabilities to meet high-precision cleanliness standards, effectively resolving industry pain points such as inefficient manual cleaning and incomplete decontamination of axle housing components.

Key Features

• 4-Mode Cleaning for 70mg Precision Standards

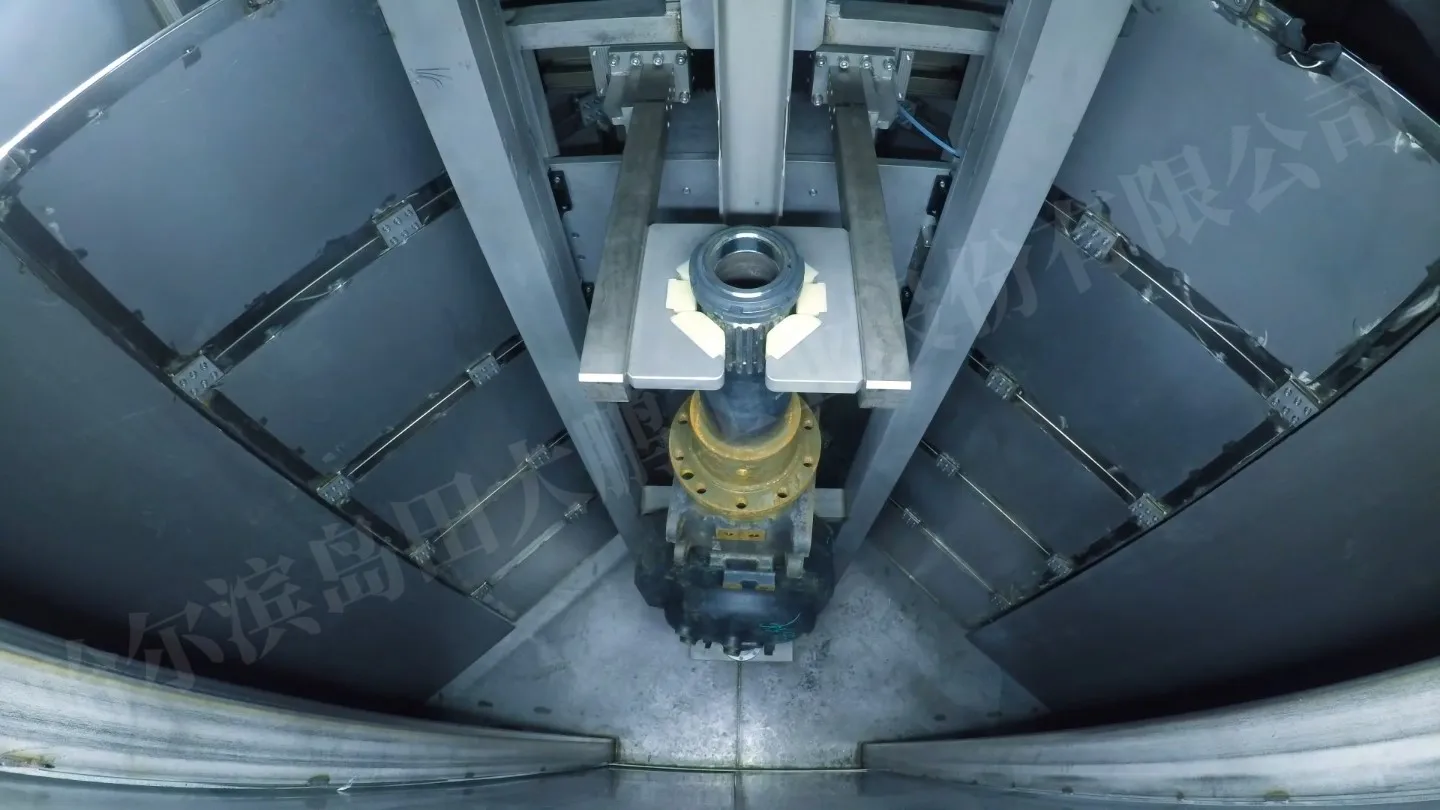

• Integrates immersion cleaning, insertion & targeted spray cleaning, and filling & flushing cleaning to address all types of contaminants. Immersion cleaning dissolves surface oil deposits, insertion cleaning clears debris from internal cavities, targeted spray cleaning eliminates localized stubborn dirt, and filling cleaning flushes narrow channels—ensuring the final cleanliness stably meets the 70mg standard, complying with strict assembly requirements.

• 3-Robot Synergy for 70s/Unit High Efficiency

• With three robots operating concurrently, the cleaning cycle per unit is only 70 seconds—far exceeding the speed of traditional single-robot or manual cleaning methods. This high-efficiency performance is perfectly suited for high-volume production lines, significantly reducing workpiece waiting time and enhancing overall production throughput.

• Dual Loading/Unloading System: Manual + Robotic

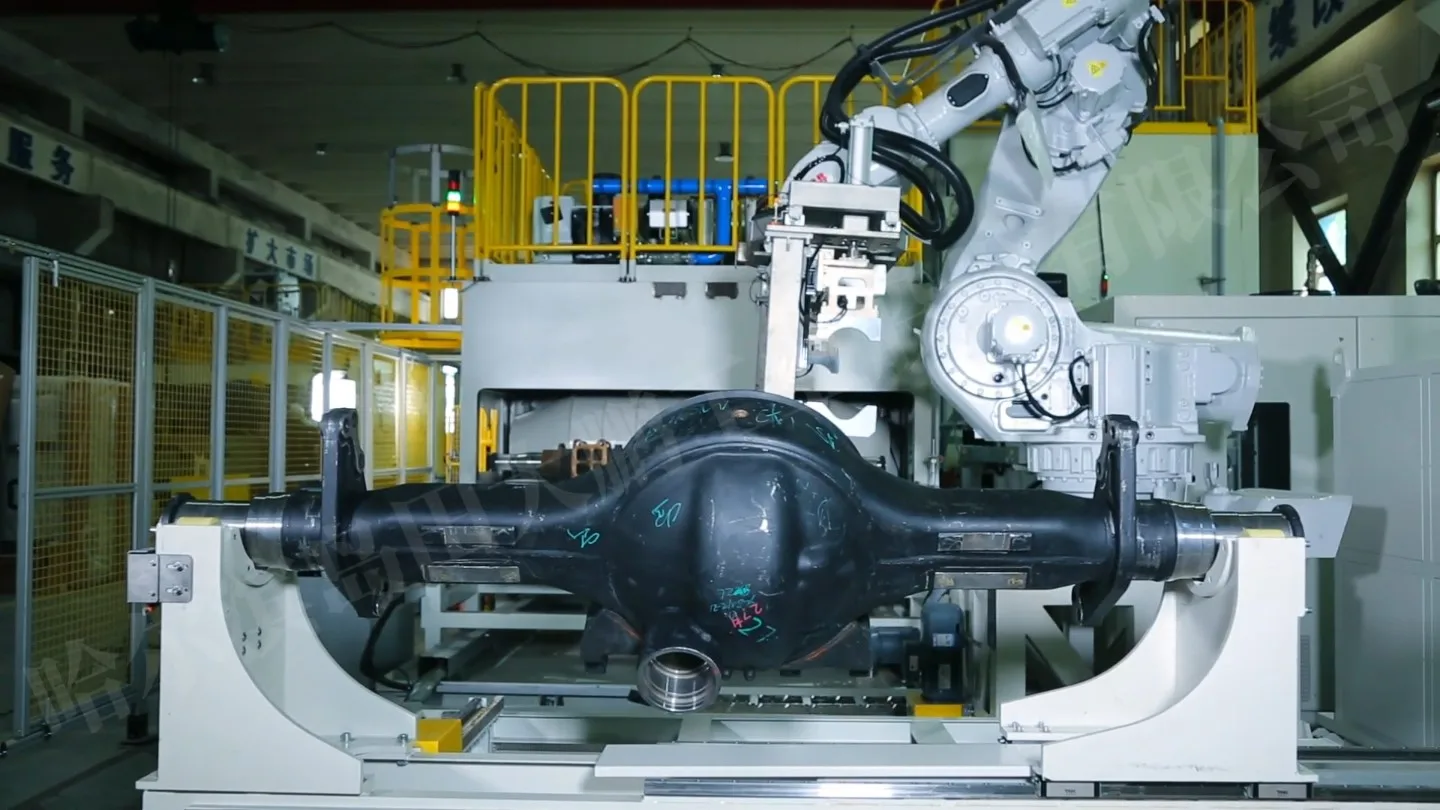

• Adopts a hybrid mode of manual loading and robotic unloading. Manual loading allows flexible adjustments for axle housings of varying sizes, while robotic unloading ensures stable, damage-free handling of workpieces weighing up to 300kg—striking a balance between operational flexibility and automation, and reducing labor intensity for operators.

• 3-Stage Drying for 100% Dryness Guarantee

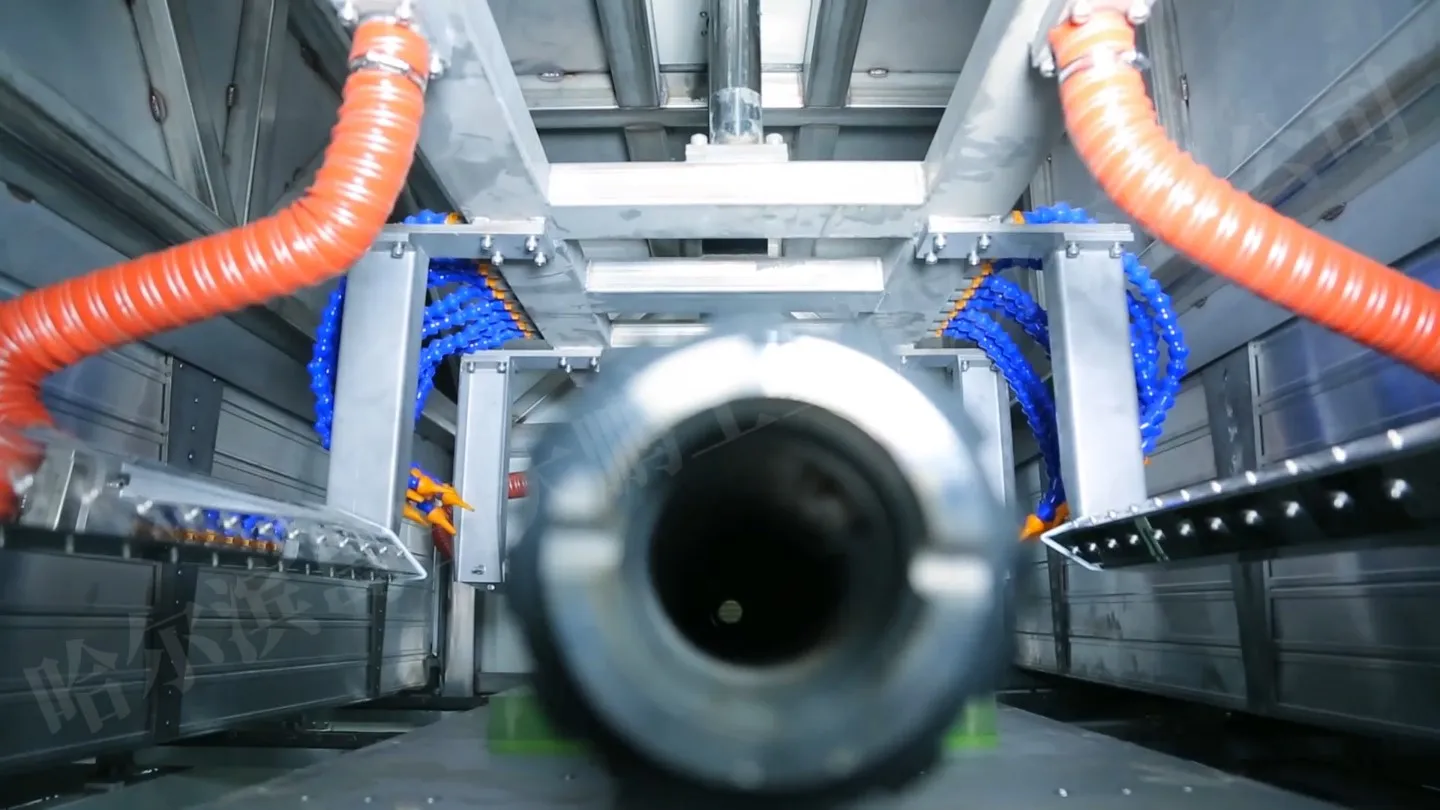

• Combines insertion & scanning air drying, hot air drying, and vacuum drying technologies. Insertion air drying targets internal cavities, scanning air drying covers external surfaces, hot air accelerates moisture evaporation, and vacuum drying eliminates residual dampness—effectively preventing rust formation or cleaning agent residues on axle housings.

• Heavy-Duty Adaptation for 300kg Axle Housings

• Optimized specifically for middle and rear axle housings weighing up to 300kg. The machine’s load-bearing structure and robotic arms are reinforced to handle heavy workpieces stably, avoiding deformation or damage during the cleaning and handling processes.

key product benefits

• This Automotive Axle Housing Precision Cleaning Machine distinguishes itself with high efficiency, precision, and flexibility. Through 3-robot collaboration, multi-mode cleaning, and adaptive design, it meets the demands of high-volume axle housing production in the automotive and heavy-duty machinery industries. Its stable performance, space-saving layout, and consistent cleaning results make it a reliable choice for manufacturers seeking to optimize workflow efficiency and ensure superior axle housing quality.

Flexible Axle Housing Adaptation

• Adjustable Robotic Arms & Nozzles:The robotic cleaning arms and nozzles feature adjustable designs, compatible with both middle and rear axle housings of different structural configurations. No need to replace large components when switching between workpiece types—saving retooling time and improving production flexibility.

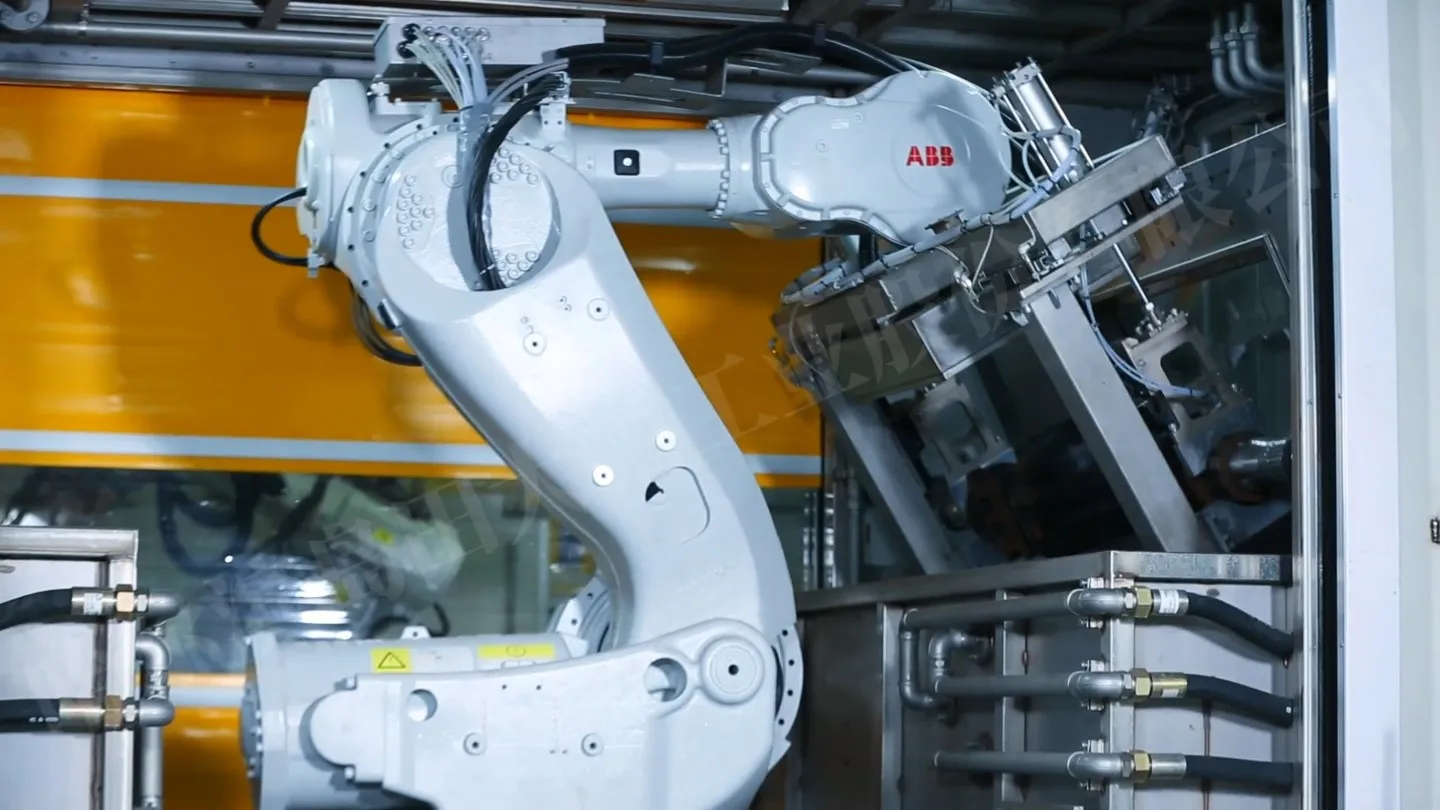

• Robotic Precision for Consistent Outcomes:Robots operate with a positioning accuracy of ±1mm, ensuring consistency in every cleaning step (such as insertion depth and spray angle). This eliminates cleaning inconsistencies caused by manual operations, maintaining stable cleanliness standards across all workpieces.

• Space-Saving Modular Layout:The three robots are arranged in a compact, modular configuration, reducing the machine’s overall footprint compared to traditional multi-station cleaning equipment. It is ideal for factories with limited workshop space, maximizing area utilization efficiency.
